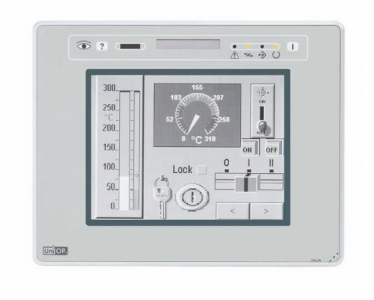

UniOP eTOP05EB eTOP05EB-DF45 HMI
UniOP eTOP05EB eTOP05EB-DF45
device with touchscreen interface and 5.6” monochrome LCD
display with 8 shades of grey. The enhanced graphical capabilities compared to the basic eTOP05
make it the ideal choice for demanding applications on a limited budget
5.6” monochrome display
8 grey levels
1/4 VGA (320×240 pixel) resolution
Resistive touchscreen
Connection to industrial bus systems and
Ethernet (requires optional plug-in modules)
32 MB internal user memory
The eTOP HMI panels are part of the UniOP family of touchscreen products. All of the eTOP
products support the rich common functionalities of the UniOP operator panels:
Powerful and intuitive programming with
the UniOP Designer 6 software
Support of more than 130 communication
drivers for industrial devices
Optional modules for fieldbus systems
(Profibus DP, CANopen, DeviceNet,
Interbus) and Ethernet. Ethernet modules
allow connection to field devices as well
as programming the HMI from Designer.
Dual-driver communication capability
Vector graphic capabilities including the
support of multiple layers and object
transparency.
Display dynamic data in numerical, text,
bargraph and graphic image formats
Data acquisition and trend presentation.
Trend data can be transferred to a host
computer using the Ethernet connection.
Analog gauge objects
Recipe data storage. Recipe data can be
transferred to a host computer using the
Ethernet connection.
Multilanguage applications. The number
of runtime languages is limited only by the
available memory. All text information in
the application can be exported in Unicode
format for easier translation.
Powerful macro editor to configure
touchscreen operation
Alarms and historical alarm list. Alarm
and event information can be printed or
transferred to a host computer using the
Ethernet connection.
Eight level password protection.
Report printing to serial printer. Reports
are freely configurable using Designer.
Ethernet-based UniNet network to share
data between UniOP HMIs and to serve
data using UniNet OPC Server.
Technical Data
Display
Type Monochrome LCD, 8 grey
levels
Resolution 1/4 VGA, 320×240 pixel
Active display area 121×91 mm (5.6”diagonal)
Colors –
Backlight White LED
Brightness 60 cd/m2 typ.
Dimming No
Memory
User memory 32 MB internal Flash
User memory
expansion
Optional removable 32 MB
SSFDC memory card
Front panel
Touch screen Analog resistive
Function keys 1
System keys –
User LED’s 1
System LED’s 4
Interfaces
PC/Printer port Yes
PLC port RS-232. RS-485. RS-422. 20
mA Current Loop
Aux port (fieldbus and
Ethernet)
Yes, with optional modules
DX port (video input) No
Serial programming
speed
9600 – 38400 bps
Functionality
Vector graphics Yes
Dual driver capability Yes
Video input No
Data acquisition and
trendsYes
eTOP05EB
Recipe memory 32 KB
UniNet network Client/Server
Alarms 1024
Event list 1024
Password Yes
Hardware RTC Yes, battery backed
Screen saver Yes
Buzzer Yes, audible feedback for
touch screen
Battery 3 V 270 mA Lithium, non
rechargeable, user
replaceable, model CR2430.
Replace with same component
or equivalent compatible with
the operating temperature of
the product.
Ratings
Power supply voltage 24 V DC (18 to 30 V DC)
Current consumption Max 0.6 A at 24 VDC
Fuse Automatic
Weight Approx 1.4 Kg
Environmental
Conditions
Operating temperature 0 to 50 °C
Storage temperature -20 to +70 °C
Operating and storage
humidity
5 – 85 % RH non-condensing
Protection class IP65 (front panel)
Dimensions
Faceplate LxH 187×147 mm (7.36×5.79“)
Cutout AxB 176×136 mm (6.93×5.35“)
Mounting depth
(type 0045)
79 mm (3.12”)
eTOP05EB-0045
PROT-03
5.6” 1/4 VGA monochrome panel with touchscreen
Disposable protection foil for 5.6″ eTOP touch panels (10 pieces
