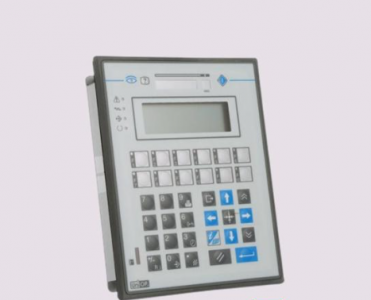

UniOP CP10G-04 CP10G-04-0045 Interface Module
UniOP CP10G-04
Monochrome graphic display
4 rows, 20 columns of text
Downloadable fonts
Scalable text
12 function keys with slide-in legends
13 user LEDs
Multilanguage project capability
Connection to bus systems
New plastic bezel with flat design
CP10G-04
Display Monochrome LCD
Backlight LED
Graphics 120×32 pixels
Display dimensions 70×21 mm
Rows/columns 4×20
Character height –
Scalable fonts Yes
User definable characters 256
Contrast regulation Software
User memory 512 KB (64 KB reserved to the protocol)
User memory expansion 512 KB
Function keys 12
System keys 23
Touch screen No
User LEDs 13
System LEDs 4
PC/Printer port Yes
PLC port RS-232. RS-422. RS-485. CL 20 mA
CP10G-04
Aux port (fieldbus connection) Yes, requires optional module
External keyboard port No
Programming speed 9600 ÷ 38400 bps
Page size 32 rows
Number of variables per page Unlimited
Recipe memory 16 KB
UniNet network Client/Server
Alarms 1024
Event list 256
Alarm info page Yes
Password Yes
Battery Yes
Hardware RTC Yes
Screen saver No
Buzzer No
CP10G-04-0045
Fuse 2 A (user replaceable)
Power supply voltage 18 ÷ 30 VDC
Max power consumption at 24VDC ~ 300 mA
Max panel thickness 5 mm
Weight ~ 1.1 Kg
Operating temperature 0 ÷ +50 °C
Storage temperature -20 ÷ +70 °C
Operating and storage humidity 5 ÷ 85 % RH non-condensing
Protection class IP65 (front panel)
Front dimensions and cutout
Front dimensions LxH 141×176 mm 5.55×6.93 “
Cutout AxB 128×163 mm 5.04×6.42 “
Cutout depth – version –0045 76 mm 2.99 ”
Cutout depth – version –0050 (Snap
top)
79.7 mm 3.14 “
