UNIOP ETOP11-0050 HMI 5.6Color Operator Interface Touch Panel
The UniOP eTOP11-0050 is a compact, high-performance HMI (Human Machine Interface) designed for industrial automation where space is at a premium but functionality cannot be compromised.
Part of the eTOP Series 10. it serves as a reliable bridge between operators and complex PLC systems.
Introduction
The UniOP eTOP11-0050 features a 3.5″ TFT color display with a silver-gray bezel.
It is engineered for durability in harsh industrial environments, offering a touchscreen interface that replaces traditional buttons and switches.
It is widely recognized for its compatibility with a vast range of industrial communication protocols.
Technical Parameter Table
| Feature | Specification |
| Display Type | TFT Color LCD |
| Display Size | 3.5″ Diagonal |
| Resolution | 320 x 240 pixels (QVGA) |
| Colors | 64K |
| Backlight | LED (Dimmable) |
| Touchscreen | Analog Resistive |
| CPU | 32-bit RISC |
| User Memory | 2 MB Flash |
| Communication Ports | RS-232, RS-485, RS-422, Ethernet (10/100 Mb) |
| USB Ports | 1 Host Port |
| Voltage Supply | 24 VDC (18-30 VDC) |
| Operating Temp | 0°C to +50°C |
| Protection Class | IP66 (Front panel) |
Unique Product Description: “The Compact Command Center”
The eTOP11-0050 isn’t just a screen; it’s a ruggedized data gateway. Unlike standard consumer tablets,
it is built with industrial-grade silicon designed to withstand electrical noise (EMI) and constant vibration.
Its “All-in-One” design philosophy means that despite its small footprint,
it provides the same sophisticated vector graphics and dual-driver communication capabilities found in much larger units.
Product Advantages and Features
Space-Saving Design: Perfect for small control panels and individual machine modules.
High Connectivity: Supports over 200 communication drivers (Siemens, Rockwell, Omron, Mitsubishi, etc.).
Durability: The IP66 rating ensures protection against dust and high-pressure water jets.
Vector Graphics: Scalable UI elements that maintain clarity at any zoom level.
Multilanguage Support: Easy deployment for international markets with Unicode font support.

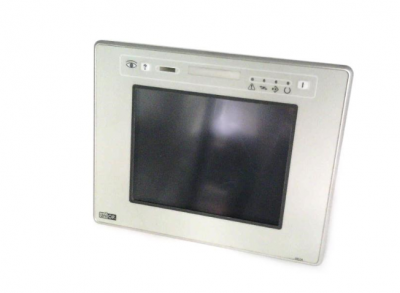

ETOP11-0050
Application Cases
Packaging Machinery: Monitoring conveyor speeds and adjusting tensioning parameters.
Food & Beverage: Small-scale batch processing where wash-down protection is required.
HVAC Systems: Centralized control for building climate zones and energy monitoring.
Water Treatment: Real-time data logging for flow rates and chemical levels in remote pump stations.
Installation and Maintenance
Installation: Uses a simple mounting bracket system. Ensure the gasket is seated correctly to maintain the IP66 rating.
Wiring: Always use shielded cables for communication to prevent data loss.
Maintenance: Clean the screen with a soft, damp cloth. Avoid harsh chemicals or sharp objects.
The LED backlight is long-lived but should be dimmed when not in use to extend its lifespan.
Related & Other Models in the Series
The eTOP Series 10 offers various sizes to fit different hardware requirements:
eTOP05-0050: The entry-level 3.5″ monochrome/blue-scale version.
eTOP10-0050: A standard 5.6″ TFT display for mid-range applications.
eTOP12-0050: A larger 5.6″ version with enhanced memory and processing.
eTOP33C: An advanced 10.4″ model for high-density data visualization.
