UniOP eTOP20C

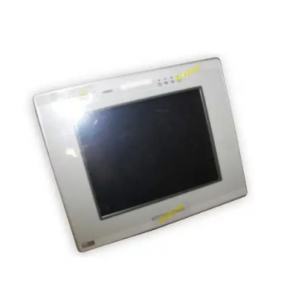

The eTOP20C is a state-of-the-art HMI device with touchscreen interface and 7.5” TFT color graphic

display. Support for 64K colors in the brilliant TFT display improves the realism of the images. The

compact size and the VGA resolution make the eTOP20C an attractive solution where space is a

premium without compromising performance.

7.5” TFT color display

VGA (640×480 pixel) resolution

64K colors

Resistive touchscreen

10/100 Ethernet interface

USB port

Connection to industrial bus systems using

optional plug-in modules

Compatible with video input module

64 MB internal user memory

Compatible with local I/O (version -0050 only)

Highlights

The eTOP HMI panels are part of the UniOP family of touchscreen products. All of the eTOP

products support the rich common functionalities of the UniOP operator panels:

Powerful and intuitive programming with

the UniOP Designer 6 software

Support of more than 150 communication

drivers for industrial devices

Built-in Ethernet port for connection to

field devices as well as programming the

HMI from Designer.

USB host port for connection of flash

drives. Flash drives can be used for

application as well as firmware upgrade of

the device

Optional plug-in modules for fieldbus

systems and networks (Profibus DP,

CANopen, DeviceNet, Interbus, KNX)

Dual-driver communication capability

Vector graphic capabilities including the

support of multiple layers and object

transparency.

Video input option

Display dynamic data in numerical, text,

bargraph, analog gauges and graphic

image formats

Data acquisition and trend presentation.

Trend data can be transferred to an host

computer using the Ethernet connection.

Recipe data storage. Recipe data can be

transferred to an host computer using the

Ethernet connection or copied to flash

drives via USB connection.

Multilanguage applications. The number

of runtime languages is limited only by the

available memory. All text information in

the application can be exported in Unicode

format for easier translation.

Powerful macro editor to configure

touchscreen operation

Alarms and historical alarm list. Alarm

and event information can be printed or

transferred to an host computer.

Eight level password protection.

Report printing to serial printer. Reports

are freely configurable using Designer

Ethernet-based UniNet network to share

data between UniOP HMIs and to serve

data using UniNet OPC Server.

Technical Data

Display

Type TFT

Resolution VGA, 640×480 pixel

Active display area 154×116 mm (7.5”diagonal)

Colors 64K

Backlight CCFL, 50000 h (1)

Brightness 240 cd/m2 typ.

Dimming Yes

Memory

User memory 64 MB internal Flash

Alternate user memory Optional removable 32/64 MB

SSFDC memory card

Front panel

Touch screen Analog resistive

Function keys 1

System keys –

User LED’s  1

System LED’s  4

Interfaces

PC/Printer port Yes

PLC port RS-232. RS-485. RS-422. 20

mA Current Loop

Ethernet port 10/100 Mbit

USB port Host version 1.1 (2)

Aux port (fieldbus) Yes, with optional modules

DX port (video input) Yes

Serial programming

speed

9600 – 38400 bps

Local I/O -0045: No -0050: Yes

Functionality

Vector graphics Yes

Dual driver capability Yes

Video input Yes (optional)

Data acquisition and

trends

Yes

Recipe memory Yes. Flash memory storage

limited only by available

memory (2)

UniNet network Client/Server

Alarms 1024

Event list 1024

Password Yes

Hardware RTC Yes, battery backup

Screen saver Yes

Buzzer Yes, audible feedback for

touch screen

Ratings

Power supply voltage 18 – 30 VDC

Current consumption Max 1.1 A at 24 VDC

Fuse Automatic

Weight Approx 1.6 Kg

Battery 3 V 285 mA Lithium, non

rechargeable, user

replaceable, RENATA model

CR2430. Replace with same

component or equivalent.

Environmental

Conditions

Operating temperature 0 to 45 °C

Storage temperature -20 to +70 °C

Operating and storage

humidity

5 – 85 % RH non-condensing

Protection class IP65 (front panel)

Dimensions

Faceplate LxH 232×187 mm (9.14×7.63“)

Cutout AxB 221×176 mm (8.70×6.93“)

Mounting depth D -0045: 71 mm (2.80”) -0050: 81 mm (3.19”)

Approvals

CE Emission

EN 61000-6-4. 2001

Immunity

EN 61000-6-2. 2005

for installation in industrial

environments

Ordering Information

eTOP20C-0045 7.5” VGA TFT touchscreen color panel with Ethernet and USB

interfaces.

eTOP20C-0050 7.5” VGA TFT touchscreen color panel with Ethernet and USB

interfaces. Compatible with local I/O.

PROT-09 Disposable protection foil for 7.5″ eTOP touch panels (10 pieces)
