UniOP MD00R-02-0045 Ultra-Compact Industrial Operator Terminal
UniOP MD00R-02-0045 Ultra-Compact Industrial Operator Terminal

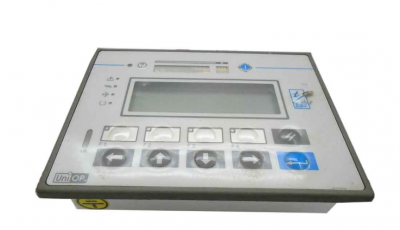

The UniOP MD00R-02-0045 is a specialized, entry-level HMI (Human-Machine Interface) designed for localized machine control.
As part of the highly successful MD Series, this unit is built for applications where panel space is at a premium but reliability cannot be compromised.
It features a high-contrast 2-row character display and a tactile keypad, making it the perfect digital replacement for traditional push-buttons and pilot lights.
MD00R-02-0045
Product Advantages and Features
Small Footprint: Its narrow design allows for installation on small pendant stations or thin cabinet mullions.
Current Loop Support: The “-0045” suffix indicates support for 20mA Current Loop communication, a rare but essential feature for older long-distance serial connections.
High Contrast: The LCD is optimized for readability even in brightly lit industrial halls, featuring adjustable contrast via software.
Tactile Reliability: The membrane keypad is designed for 24/7 use, providing physical feedback that ensures the operator knows when a command has been registered.
Easy Migration: Fully compatible with UniOP Designer software, allowing for quick project updates and deployment across multiple machines.
Unique Product Description
The UniOP MD00R-02-0045 is the “Micro-Commander” of the industrial world.
It is uniquely engineered to solve the problem of “information overload” by stripping the interface down to its most vital components.
Its specific 2-row architecture is designed for high-speed status updates—the top row typically shows the machine state, while the bottom row provides actionable data.
It is the go-to terminal for OEMs who need a rugged, standardized interface that is essentially “bulletproof” against electrical noise and physical wear.
