UniOP ePALM10-0061 Handheld Robot Trainer
UniOP ePALM10-0061 Handheld Robot Trainer

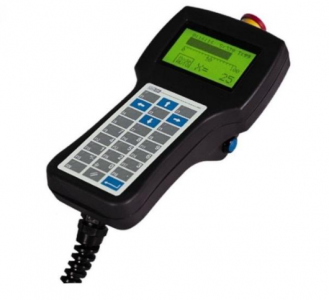

The ePALM10 is a state-of-the-art handheld HMI device with a graphic display and a keypad. The
rugged polyamide enclosure offers a high level of shock and environmental resistance making the
ePALM the ideal choice for use in the factory floor.
• Graphical display 120×64 pixels (up to 8 lines
20 characters)
• Highly visible transflective LCD display
• 27-keys keypad with tactile feedback
• Connection to industrial bus systems
• Large memory size (512 KB Flash)
• IP65 protection
• Includes Emergency Stop button
• Includes enabling switches, normal or 3
positions
• Available in versions for connection to
Ethernet and Profibus DP
Highlights
The ePALM HMI panels are the handheld products of the UniOP family. All of the ePALM products
support the rich common functionality of the UniOP operator panels:
• Versions available for connection to
Ethernet and Profibus DP. Ethernet
version allows connection to field devices
as well as programming the HMI from
Designer.
• Powerful and intuitive programming with
the UniOP Designer 6 software
• Support of more than 130 communication
drivers for industrial devices
• Transflective LCD display ensures
readability under the most critical light
conditions
ePALM10-0061
• Optional modules for fieldbus systems
(Profibus DP, CANopen, DeviceNet,
Interbus) and Ethernet. Ethernet modules
allow connection to field devices as well
as programming the HMI from Designer.
• Display dynamic data in numerical, text,
bargraph and graphic image formats
• Recipe data storage. Recipe data can be
transferred to an host computer using the
Ethernet connection.
• Multilanguage applications. The number
of runtime languages is limited only by the
available memory. All text information in
the application can be exported in Unicode
format for easier translation.
• Powerful macro editor to configure
keypad operation
• Alarms and historical alarm list. Alarm
and event information can be printed or
transferred to an host computer using the
Ethernet connection.
• Eight level password protection.
• Report printing to serial printer. Reports
are freely configurable using Designer.
• Ethernet-based UniNet network to share
data between UniOP HMIs and to serve
data using UniNet OPC Server.
In addition some unique features make the
ePALM10 a perfect fit for handheld operation.
• Emergency Stop button. Hardwired.
• Enabling switches. Hardwired.
• High-quality polyurethane cable for
mobile applications.
Model Cable Type/Length PC/Printer Port PLC Port Module Enabling switches
ePALM10-0061 Serial/5m Yes Yes – two normal
ePALM10-0062 Serial/10m Yes Yes – two normal
ePALM10-3P61 Serial/5m Yes Yes – one 3-position
ePALM10-3P62 Serial/10m Yes Yes – one 3-position
ePALM10-0066 Ethernet/5m – – SCM11 one 3-position
ePALM10-0068 Ethernet/10m – – SCM11 one 3-position
ePALM10-0069 Profibus DP/5m Yes – TCM08 one 3-position
ePALM10-0067 Profibus DP/10m Yes – TCM08 one 3-position
