ABB PFSK151 3BSE018876R1 High-performance signal processing unit
The ABB PFSK151 (3BSE018876R1) is a high-performance Signal Processing Unit within the ABB Advant Controller series, specifically designed for tension measurement systems (Pressductor® Technology).
It serves as the “brain” that translates raw signals from load cells into usable data for industrial automation.
Technical Parameter Table
| Feature | Specification |
| Product ID | 3BSE018876R1 |
| Model Type | PFSK 151 |
| Function | Signal Processing Unit for Tension Electronics |
| Input Voltage | 24V DC (typical) |
| Power Consumption | 10–15 W |
| Input Channels | 2-channel differential inputs |
| Output Signals | 0–10 V, 4–20 mA, and Digital I/O |
| Interface | RS-232 / RS-485 Configuration Port |
| Mounting | DIN Rail or Sub-rack mounting |
| Operating Temp | 0°C to +55°C |
Product Advantages and Features
Precision Filtering: Advanced digital filtering eliminates mechanical noise and vibrations, ensuring stable tension readings even at high speeds.
Built-in Diagnostics: Constantly monitors the health of the connected load cells and internal circuitry, reducing unplanned downtime.
Plug-and-Play Integration: Designed specifically for the Advant OCS and Master systems, allowing for seamless communication.
Robust Isolation: High galvanic isolation protects the processor from electrical surges and industrial interference.
Application Cases
Paper & Pulp Mills: Managing web tension in paper machines to prevent breaks and ensure consistent winding.
Steel Processing: Monitoring strip tension in rolling mills and galvanizing lines to maintain product thickness and quality.
Converting & Printing: Controlling tension for plastic films, foils, and high-speed printing presses.
Textile Industry: Ensuring uniform tension during fabric dyeing and finishing processes.
Unique Product Description
The PFSK151 stands out because of its heritage in Pressductor® technology. Unlike standard strain gauge processors, this unit is engineered to handle the high-output,
low-impedance signals characteristic of ABB’s heavy-duty transducers. It doesn’t just “read” data; it interprets the physical stress of industrial machinery with surgical precision,
making it the gold standard for harsh environments where reliability is non-negotiable.
Installation and Maintenance
Installation
Mounting: Secure the unit onto a standard 35mm DIN rail. Ensure at least 20mm of clearance for airflow.
Wiring: Use shielded twisted-pair cables for signal inputs to minimize EMI. Ensure the 24V DC power supply is stable.
Grounding: Connect the PE (Protective Earth) terminal directly to the common ground busbar.

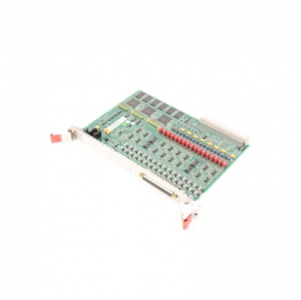

PFSK151
Maintenance
Calibration: It is recommended to perform a zero-point calibration annually or after any mechanical changes to the load cell mounting.
Cleaning: Ensure the cooling vents remain free of dust and debris, especially in paper or textile environments.
Firmware: Periodically check for compatibility updates if upgrading the master controller system.
Related Models & Same Series
Related Component Models
PFTL 101B: Horizontal Load Cell often paired with this unit.
PFRL 101C: Radial Load Cell for narrow web applications.
PFCL 201: Vertical Pillar Load Cell.
Other Models in the Same Series
PFSK 152: Dual-channel version with expanded I/O capabilities.
PFSK 101: Legacy signal processing board for older Advant systems.
PFEA 111/112: Modern compact tension electronics (the current evolution of the PFSK series).
