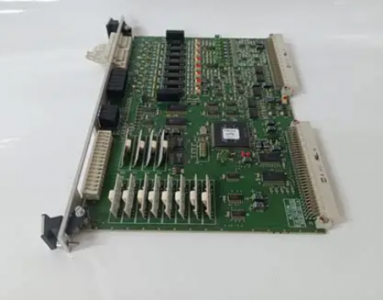

ALSTOM PIB102A 3BEB0180 Communication Card / PCB Module

Introduction to ALSTOM PIB102A 3BEB0180

The ALSTOM PIB102A 3BEB0180 is a high-reliability Communication Interface Card (PC Board module) belonging to the Quantum / MV7000 series.

Primarily utilized in marine and industrial automation, this module acts as a critical link between the central processor and field devices, ensuring high-speed data acquisition and precise signal transmission.

Under the Converteam brand (an Alstom heritage line now integrated with GE Power Conversion), the PIB102A is specifically designed for mission-critical systems like the MV7000 drive, where it manages the logic operations and signal processing required for large-scale power conversion.

Technical Parameter Table

Related Models & Series

The PIB series encompasses various interface and control boards tailored for the Converteam architecture:

PIB100G: High-capacity I/O interfacing module.

PIB101C: Companion board for VME rack 8-slot configurations.

PIB310 (3BHB0190): Specialized adapter module for signal routing.

PIB315B: Pulse PCB VME board for high-speed counter applications.

PIB-504: Servo controller variant for precision motion tasks.

Product Advantages and Features

High-Speed Data Acquisition: Optimized for minimal latency in high-frequency power switching environments (up to 30 kHz).

Industrial Durability: Built to withstand the harsh conditions of marine propulsion and large-scale power plants (vibration and EMI resistant).

Multi-Functional Logic: Divided into operation logic, register, and control components for sophisticated command analysis.

Seamless Integration: Designed specifically for the MV7000 system, ensuring “plug-and-play” compatibility with existing Converteam racks.

Diagnostics Support: Features onboard processing to report status and fault codes back to the central SCADA system.

Application Cases

Marine Propulsion: Found in MV7000 drive systems onboard large vessels (e.g., Noble Bully 2) for motor speed and torque regulation.

Power Generation: Used in turbine control cabinets to manage the communication between localized sensors and the main controller.

Petrochemical Plants: Integrated into high-capacity compressor drives to ensure stable operation under variable loads.

Metal & Mining: Controlling heavy-duty mill motors where high-frequency switching is required for precise torque control.

Installation and Maintenance

Installation

Slot Alignment: Ensure the card is correctly aligned with the VME or Quantum rack guide rails to prevent pin damage on the 3BEB0180 connector.

ESD Safety: Always handle the card using an anti-static wrist strap. Touch the metal frame of the rack before inserting the PCB.

Firmware Check: Verify that the firmware revision (e.g., V1.3) matches the existing system requirements before commissioning.

PIB102A 3BEB0180

Maintenance

Visual Inspection: Check for “burnt” smell or discolored components, which may indicate over-voltage stress.

Dust Management: Clean the edge connectors with an electronic-grade cleaner to maintain signal integrity in humid or dusty environments.

Backup: Ensure the system logic and parameters are backed up via the MV7000 interface before swapping modules.

Unique Product Description

The ALSTOM PIB102A 3BEB0180 is the “Digital Liaison” of the power conversion world. While the high-voltage sections of a drive handle the raw power, the PIB102A provides the finesse.

It is unique because it combines Quantum-series processing with the specialized Converteam marine heritage, allowing a 1-kilogram board to govern the behavior of multi-megawatt propulsion motors.

In the world of industrial maintenance, it is known as a “Life Extension” component—critical for keeping legacy MV7000 systems operational well into the 2020s and beyond.
