ABB 500AIM02 1MRB150022R001 1HDF 930412 X010 Analog Input Module (AIM)
The ABB 500AIM02 (1MRB150022R001) is a high-performance Analog Input (AIM) Module primarily used within the ABB Procontrol P13 and AC500 industrial automation ecosystems.
It is engineered for the precise acquisition and processing of analog signals in demanding environments like power plants, substations, and chemical processing facilities.
1. Introduction
The 500AIM02 serves as a critical bridge between field sensors (measuring temperature, pressure, or flow) and the central processing unit.
It converts continuous physical signals into digital data, ensuring high-speed transmission and interference resistance.
Its modular “plug-and-play” design allows it to be integrated into standard ABB racks for both centralized and decentralized control architectures.
2. Technical Parameter Table
| Parameter | Specification |
| Model Number | 500AIM02 / 1MRB150022R001 |
| Part Code | 1HDF 930412 X010 |
| Module Type | Analog Input Module (AIM) |
| Input Channels | Typically 8 or 16 (Configurable) |
| Signal Types | 0/4-20mA, 0-10V, ±10V, RTD (Pt100) |
| Resolution | 12-bit to 16-bit (Model dependent) |
| Supply Voltage | +24 V DC (via rack backplane) |
| Power Consumption | ~2.1W (Typical) / 5.3W (Max) |
| Operating Temp | 0°C to +60°C (Industrial Grade) |
| Isolation | Channel-to-channel and channel-to-logic isolation |
| Diagnostics | Self-diagnosis, Over-range, and Under-range detection |
3. Related Models
500AIM01: Standard analog input module.
70AI01 / 70AI02: Newer generation Procontrol P13 analog input modules.
500BIM01: Binary Input Module (companion for digital signals).
500BOM01: Binary Output Module.
4. Product Advantages and Features
High Reliability: Built with industrial-grade components to withstand electromagnetic interference (EMI) and harsh vibrations.
Precision: Features advanced signal filtering and de-jittering to ensure high accuracy in data collection.
Flexibility: Supports a wide range of input types (Current, Voltage, Resistance) via software configuration.
Redundancy Support: Compatible with redundant system architectures to prevent data loss in the event of a single point of failure.
Seamless Integration: Designed for immediate compatibility with ABB’s Procontrol P13 local bus systems.

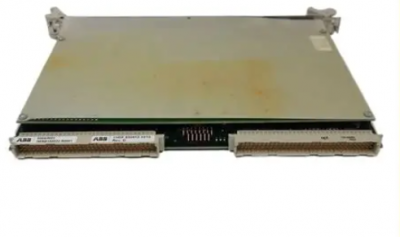

500AIM02 1MRB150022R001 1HDF 930412 X010
5. Application Cases
Power Generation: Monitoring turbine parameters (speed, temperature) and boiler pressure.
Substation Automation: Collecting transformer oil temperatures and busbar voltages.
Oil & Gas: Process control for refineries and pipeline monitoring.
Water Treatment: Real-time data collection for flow meters and chemical dosing sensors.
6. Installation and Maintenance
Installation: The module is designed for rack mounting. Ensure the power is disconnected before sliding the module into its designated slot on the backplane.
Tighten the front panel screws to secure the electrical connection.
Configuration: Use the P13 Configurator tool to set the local bus address and define input ranges (e.g., switching from 4-20mA to 0-10V).
Maintenance:
Regularly check the front-panel LED status (ALARM/RUN).
Clean dust from ventilation slots to prevent overheating.
Calibrate the analog channels annually to maintain accuracy.
