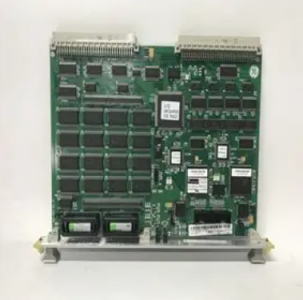

Metso D201380 CPU / Processor Module
The Metso D201380 (often identified with the model code MBR) is a high-performance CPU / Processor Module belonging to the ACN (Automation Cloud Node) platform of the Metso DNA (now Valmet DNA) Distributed Control System.
It is a modern, high-tier controller designed for complex automation tasks and high-speed data processing.
1. Introduction
The D201380 MBR functions as a Master Control Node or Real-Time Node within the Valmet DNA environment.
It is the “brain” of the control cabinet, responsible for executing control logic, processing I/O data, and communicating with the wider DCS network.
This module is specifically noted for its high-speed processing capabilities and is typically used in the ACN RT (Real-Time) and ACN MR (Master Redundant) configurations.
2. Technical Parameter Table
| Parameter | Specification |
| Model Number | D201380 (MBR) |
| Component Type | CPU / Processor Module |
| Series | ACN (Automation Cloud Node) / Valmet DNA |
| Hardware Revision | Typically Ver: 04 or higher |
| Processor | High-performance Multicore Industrial CPU |
| Network Interfaces | Dual Gigabit Ethernet (Redundant ACN) |
| Memory | Industrial-grade RAM & Flash for logic storage |
| Operating Voltage | 24V DC |
| Operating Temp | -20°C to +70°C (Fanless cooling) |
| Mounting | DIN Rail or ACN-specific Base Unit |
3. Related Models
The D201380 is part of the “D201” high-performance series and works alongside:
D201138 (IBC): Interface Bus Controller used for local I/O communication.
D201139 (IPS): Intelligent Power Supply or interface component for the CPU.
D201376: A similar Real-Time (RT) node often used in parallel or different cabinet tiers.
D201134 / D201135: Analog Input and Output modules managed by this processor.
4. Application Cases
Pulp & Paper Processing: Managing high-speed paper machine logic and complex fiber-line control loops.
Power Plant Automation: Coordinating boiler and turbine control where millisecond-level precision and high availability are required.
Mining & Aggregates: Acting as the primary controller for Nordberg Crusher Automation systems, providing real-time monitoring and protection.
Chemical Refining: Executing complex PID and sequence control in hazardous or demanding environments.
5. Product Advantages and Features
High Processing Density: Capable of executing thousands of function blocks in very short scan cycles (10 ms – 20 ms).
Cybersecurity Hardened: Features an industrial-grade operating system designed to meet modern security standards (IEC 62443).
Robust Fanless Design: Uses advanced heat dissipation techniques to avoid mechanical fans, increasing reliability in dusty or vibrating industrial settings.
Master Redundancy: Fully supports 1:1 hot-standby redundancy, allowing for “bumpless” transfer of control in the event of a hardware failure.
Hot-Swap Support: The module can be replaced while the rack is powered (in redundant setups) without stopping the process.
