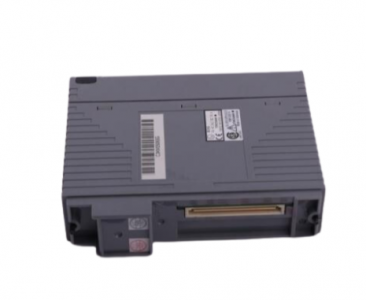

YOKOGAWA SR1030B62 high-precision Power Supply Unit (PSU)
The Yokogawa SR1030B62 is a high-precision Power Supply Unit (PSU) specifically engineered for the CENTUM CS 1000 and CENTUM CS 3000 Distributed Control Systems (DCS).
It belongs to the SR series of modular power supplies designed to provide stable, low-noise DC power to the CPU and communication nests within an instrumentation rack.
1. Introduction
The SR1030B62 is a “back-end” power module, typically mounted in a dedicated power supply nest. It converts standard AC utility power into the highly regulated DC voltages required by the controller’s internal circuitry.
The “B62” suffix identifies its specific configuration, including input voltage range (100–120 V AC) and its capacity for redundant operation.
This module is a “heart” component for legacy systems, ensuring that even if one power source fails, the control system remains fully operational.
2. Technical Parameter Table
| Feature | Specification |
| Model | SR1030B62 |
| Input Voltage | 100 to 120 V AC |
| Input Voltage Range | 80 to 132 V AC |
| Input Frequency | 47 to 63 Hz |
| Output Voltage | +5 V DC (Internal Logic), +24 V DC (System Use) |
| Redundancy | Supported (Parallel operation with redundant partner) |
| Status Signaling | Ready Contact (Dry contact for failure alarm) |
| Mounting | Specialized Power Supply Nest (Rack Mount) |
| Weight | Approx. 1.5 kg |
| Operating Temp | 0 to 50°C |
3. Product Advantages and Features
Mission-Critical Reliability: Built with high-grade industrial capacitors and components meant for a 15–20 year operational lifespan.
Dual-Line Redundancy: Specifically designed to work in a “dual-redundant” mode where two SR1030 units share the load; if one fails, the other assumes 100% load with zero transition time (bumpless).
Clean DC Output: Features advanced filtering to prevent electrical noise from the AC grid from interfering with sensitive analog-to-digital conversions in the I/O modules.
Fail-Safe Alarm: Equipped with a “Contact Output” that triggers an alarm on the operator’s console (HIS) the moment the module detects an internal fault or loss of input power.
Robust Protection: Includes built-in overvoltage and overcurrent protection to safeguard expensive CPU and communication cards.
SR1030B62
4. Application Cases
Legacy DCS Maintenance: Serving as a vital replacement part for ageing CENTUM CS 1000/3000 systems in refineries and chemical plants.
Critical Control Nests: Powering the communication bridge modules that link the control station to the plant-wide network.
24/7 Process Control: Essential in industries like glass manufacturing or iron smelting, where a power reset could lead to catastrophic equipment damage or solidified materials.
Emergency Infrastructure: Used in some older Safety Instrumented Systems where stable, redundant power is a prerequisite for SIL compliance.
