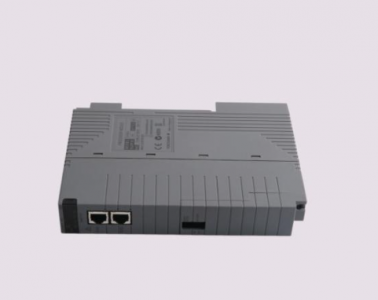

YOKOGAWA CP451-10 Central Processing Unit (CPU) / Control Module

1. Introduction

The YOKOGAWA CP451-10 is a central processing unit (CPU) / controller module designed for use in Yokogawa’s distributed control systems (DCS), especially the CENTUM VP and CENTUM CS 3000 platforms.

It functions as the computational heart of a Field Control Station (FCS), executing control logic, managing I/O communication, and coordinating deterministic automation tasks for industrial processes.

2. Technical Parameter Table

Parameter    Specification (Typical)

Model    CP451-10

Type    CPU / Processor Module

Compatible Systems    CENTUM VP, CENTUM CS 3000

Processor Architecture    RISC-based real-time CPU

Memory    Typically tens to hundreds of MB RAM + Flash (varies by revision)

Communication Interfaces    Dual Vnet/IP (Ethernet), serial ports, fieldbus support via I/O modules

Redundancy    1:1 hot standby support

Scan Cycle Time    As low as ~10 ms for regulatory loops

Power Supply    24 V DC via backplane

Operating Temp.    ~0 °C to +50–60 °C (industrial range)

Humidity    ~5–95 % RH non-condensing

Mounting    Rack-mounted in FCS chassis

Certifications    CE, UL, IEC, SIL compliance in system config

Note: Exact values depend on specific revision and vendor documentation; always check official Yokogawa manuals for engineering deployment.

3. Related Models

Model    Relation to CP451-10

CP451-20 / CP452-10    Enhanced CPU variants with more memory or performance

CP450 (legacy)    Older generation CPU module for CS 3000 systems

AAI143 / AAO143    Analog input/output modules used with the CPU

VM451 (Vnet module)    Communication support for redundant networks

AFW10D / AFW20D    FCS base units (rack backplane) to mount CP451-10 and I/O cards

These models collectively form the control system backbone in a Yokogawa DCS installation.

4. Application Cases

The CP451-10 serves as the central controller in process automation systems for industries requiring high reliability, real-time control, and integration with field instrumentation:

Petrochemical & Refining

Controls distillation columns, heat exchangers, and safety interlocks with fast deterministic loop execution.

Power Generation

Coordinates turbine, boiler, and feedwater control sequences, ensuring plant stability and regulatory compliance.

Chemical & Pharmaceutical

Executes PID and sequential batch logic for reactors, dosage systems, and safety interlocks.

Water & Wastewater Treatment

Automates pump sequencing, filtration, and chemical dosing, integrating with SCADA and enterprise systems.

Brownfield Upgrades

Used in existing CS 3000 systems during modernization to CENTUM VP while preserving validated logic structures.

CP451-10

5. Product Advantages and Features

High Deterministic Performance

Fast control cycle (as low as ~10 ms) ensures precise process regulation.

Redundancy & High Availability

Supports hot standby CPU configuration to maintain continuity during hardware failures.

Network Integration

Dual Vnet/IP interfaces provide fault-tolerant communication with operator stations and engineering systems.

Broad Protocol Support

Compatible with fieldbus standards (HART, FOUNDATION Fieldbus) via remote I/O modules, facilitating multi-vendor sensor integration.

Scalability & Compatibility

Works across multiple generations of Yokogawa DCS (CS 3000 → VP) and supports large I/O counts.

Diagnostic Visibility

LED and software diagnostics help detect faults early and support predictive maintenance.

6. Other Models in the Same Series

Other controller or control-related modules in the Yokogawa ecosystem include:

CP451-50 — Newer or replacement CPU variant with expanded performance (successor).

CP461-xx — Higher-end controller for later generation CENTUM VP systems (with advanced features).

Communication modules (e.g., VM451. CP401-xx) — For interfacing networks and protocols.

Field I/O modules like AAI/AAO and ADI/ADO for analog/digital signals.

These modules support expansion and customization of the control architecture around CP451-10.

Summary

The YOKOGAWA CP451-10 is a robust DCS CPU/controller module, central to CENTUM VP/CS 3000 automation systems.

It delivers high-performance deterministic control, redundancy, and scalable networked integration, making it suitable for complex industrial environments like petrochemical plants, power generation, and water treatment systems.
