YOKOGAWA F3PU10-0N AC power supply module
The YOKOGAWA F3PU10-0N is a core AC power supply module designed for the FA-M3 (Free Application Multi-controller) and FA-M3V PLC series.
It serves as the primary power source for the backplane logic, ensuring that the CPU and expansion modules receive a regulated voltage to operate.
1. Introduction
The F3PU10-0N is the standard AC power supply for smaller FA-M3 rack configurations. It is typically installed in the dedicated “Power” slot on the far left of the base module.
While the older F3PU06-0N was widely used, the F3PU10-0N (and its terminal-revision successor, the F3PU10-0S) has become the common standard for 4-slot and 6-slot systems due to its reliability and wide input voltage range.
2. Technical Parameter Table
| Parameter | Specification |
| Manufacturer | Yokogawa Electric |
| Model Number | F3PU10-0N (Legacy terminal version) |
| Input Voltage | 100 to 240V AC (Single-phase, 50/60 Hz) |
| Fluctuation Range | 85 to 264V AC |
| Rated Output | 5V DC (System Logic) |
| Rated Output Current | 2.0 A |
| Power Consumption | 35 VA |
| Allowable Power Failure | $\le 20$ ms (Momentary) |
| Weight | Approx. 190g (0.42 lbs) |
| Dimensions | 28.9(W) x 100(H) x 83.2(D) mm |
3. Product Advantages and Features
Universal Input: Operates seamlessly across global power grids (100V to 240V) without manual switching.
Safety & Diagnostics: Includes a FAIL output contact that opens if the 5V DC output drops, allowing the system to trigger an emergency shutdown or alert.
Robust Noise Immunity: Designed to withstand high-voltage spikes ($1500\text{Vp-p}$) typical in industrial environments, ensuring stable CPU operation.
High Efficiency: Low power consumption and natural convection cooling (no fan required), which increases the module’s lifespan.
4. Application Cases
The F3PU10-0N is found in systems where the total power draw of the CPU and I/O does not exceed 2.0A:
Small Machine Automation: Powering 4-slot racks for dedicated machine control (e.g., labeling or sorting).
Remote I/O Stations: Providing power to distributed RIO racks in a larger plant network.
Environment Monitoring: Used in data logging systems for cleanrooms or laboratories.
HVAC Control: Powering local logic controllers in building management systems.

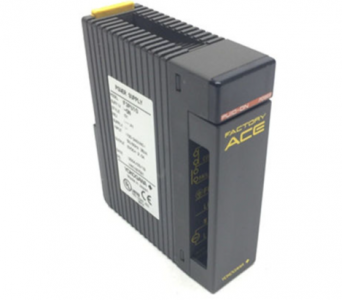

F3PU10-0N
5. Other Models in the Same Series
Depending on the number of slots in your rack and your power source, you may need a different module:
F3PU10-0S: The direct successor to the 0N model. The only major difference is the terminal screw size (M4 instead of M3.5).
F3PU20-0S: High-capacity AC power supply (4.3A) for larger 9-slot and 13-slot racks.
F3PU30-0S: Max-capacity AC power supply (6.0A) for fully populated 16-slot racks.
F3PU16-0N / 0S: DC-input version (24V DC) with 2.0A output.
F3PU36-0S: High-capacity DC-input version (24V DC) with 6.0A output.
Important Note: If you are replacing an F3PU10-0N with an F3PU10-0S, verify your wire terminal size.
The “-0S” uses M4 screws, which may require slightly wider fork or ring terminals than the older “-0N” M3.5 screws.
