YOKOGAWA AAI543 Simulation output module
The YOKOGAWA AAI543 is a high-performance Analog Output Module designed for the CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS).
It is a critical component used to send control signals from the DCS to field devices such as control valves and actuators.
1. Introduction
The AAI543 provides 16 channels of 4-to-20 mA current outputs. It is part of the FIO (Field network I/O) series and is known for its high density and reliability.
This module is typically installed in an I/O node unit and communicates with the Field Control Station (FCS) to execute precise process control.
2. Technical Parameter Table
| Parameter | Specification |
| Manufacturer | Yokogawa Electric |
| Model Number | AAI543 (Current Output Module) |
| Number of Channels | 16, isolated |
| Output Signal | 4 to 20 mA DC |
| Allowable Load Resistance | 0 to $750 \Omega$ |
| Accuracy | $\pm 48 \mu\text{A}$ (0.3% of span) |
| Data Update Cycle | 10 ms |
| HART Communication | Supported (on AAI543-H models) |
| Mounting | Baseplate for FIO |
| Weight | Approx. 0.4 kg |
| Current Consumption | Max. 450 mA (5V DC internal) |
3. Product Advantages and Features
High Channel Density: 16 channels in a single compact module maximize cabinet space efficiency.
Isolation: Each channel is isolated, preventing electrical faults in one loop from affecting others or the system backplane.
HART Compatibility: The “-H” version allows the DCS to perform remote device management, configuration, and diagnostics on HART-enabled smart valves.
Hot-Swappable: Supports online replacement (in redundant configurations), ensuring zero downtime during maintenance.
Redundancy Support: Can be configured in a dual-redundant pair; if the primary module fails, the secondary takes over instantly without interrupting the output signal.

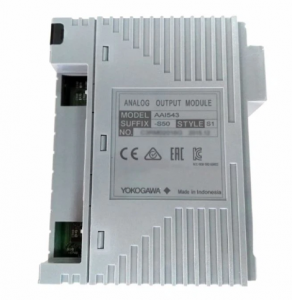

AAI543
4. Application Cases
The AAI543 is found in mission-critical process industries:
Oil & Gas Refineries: Controlling the position of large pneumatic control valves in distillation columns.
Chemical Plants: Managing precise flow rates of reactants into high-pressure vessels.
Power Generation: Controlling feedwater valves and steam turbine governors.
Pharmaceuticals: Maintaining exact pressure and temperature profiles by modulating steam and cooling water valves.
5. Other Models in the Same Series
Yokogawa’s FIO series includes various analog modules tailored for different signal types:
AAI141 / AAI143: Standard Analog Input modules (4-20 mA).
AAI841: Analog I/O module (8 inputs / 8 outputs).
AAV141 / AAV142: Voltage Input modules.
AAT141: Thermocouple/mV Input module.
AAR145: RTD (Resistance Temperature Detector) Input module.
6. Related Components
To fully implement the AAI543. you will typically need:
Pressure Clamp Terminal Block: (e.g., ATB1A) for field wiring.
KS1 Cable: For connecting the module to a terminal board.
FIO Baseplate: (e.g., AFV30D or ANB10D) where the module resides.
