Yaskawa JANCD-MCP01 High-performance main control board

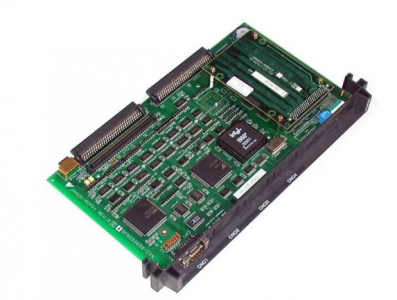

YASKAWA JANCD-MCP01 Introduction
The YASKAWA JANCD-MCP01 is a high-performance Main CPU Control Board specifically engineered for the Yaskawa Motoman NX100 robot controller.
It serves as the primary processing hub of the system, responsible for motion path calculation, executing high-level robot language commands (INFORM III), and managing system-wide communication between peripheral I/O and the drive units.
As the “heart” of the NX100 controller, the MCP01 board handles the complex kinematics required for multi-axis robot movements, ensuring precision and smooth trajectory control.
Technical Parameter Table
| Parameter | Specification |
| Model Number | JANCD-MCP01 |
| Compatible Controller | Motoman NX100 |
| Function | Main CPU / Master Control Board |
| Operating System | Real-time OS for Robot Control |
| Processor | High-speed RISC Processor |
| Interface Slots | Supports PCMCIA cards for memory/data backup |
| Communication | Ethernet (standard), Serial, and System Bus connections |
| Power Consumption | Approx. 15W – 20W (logic side) |
| Weight | Approx. 0.45 kg |
Product Advantages and Features
Multi-Tasking Capability: Capable of managing simultaneous background logic tasks while executing primary robot motion.
High-Speed Path Planning: Advanced algorithms reduce cycle times by optimizing acceleration and deceleration curves.
Expandable Memory: Features a PCMCIA slot for easy backup of CMOS parameters, user programs, and system updates.
Self-Diagnostics: Equipped with status LEDs (Run, Alarm, Error) to facilitate rapid troubleshooting of controller faults.
Integrated Ethernet: Provides seamless connectivity for factory networking, remote monitoring, and FTP data transfers.
JANCD-MCP01
Application Cases
Arc Welding: Coordinating precise torch positioning with power source parameters for consistent weld quality.
Spot Welding: Managing high-speed movement between points while controlling pneumatic or electric weld guns.
Material Handling: Handling complex palletizing patterns and heavy-load logic in logistics centers.
Assembly Automation: Synchronizing robot movements with vision systems for precision part placement.
Related Models & Other Models in the Same Series
The JANCD-MCP01 works in conjunction with several other specialized boards within the NX100 rack to form a complete control system:
| Model | Function / Description |
| JANCD-NCT01 | Control Group Board (Axis control interface) |
| JANCD-NIO01 | Standard Digital I/O Board |
| JANCD-NTU01 | Terminal Unit for external signal connections |
| JANCD-NIF01 | Fieldbus Interface Board (DevicetNet, Profibus, etc.) |
| JANCD-NCP01 | Successor/Variant CPU board used in similar architectures |
