Stucke Elektronik SYMAP®ARC Arc protection system

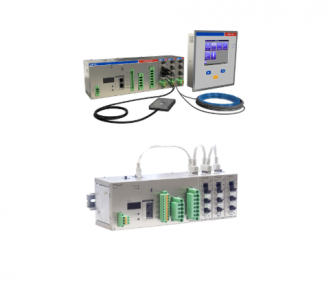

SYMAP®ARC
SYMAP®ARC is a protection system that uses optical sensors and the load current input on the system to detect arcs caused by short circuits, ensuring that arc faults can be quickly cleared within a short interruption period (< 2 milliseconds) of the electrical system.
Arc protection systems for low-voltage and medium-voltage applications
Modular and scalable system, easy to install on DIN rails
Stainless steel enclosure, achieving high electromagnetic compatibility safety
Simple system: triggered only under light conditions
Complex system: arc detection and trip, current rate detection (DI/DT), area and cable compartment selectivity
Protect lives
Reduce injury impact
Improve the usability of containers or plants
Main module
ARC-MS The Master S module, which provides trip contacts and interconnection, and connects to the optical detection module.
ARC-I The Master E extension module provides trip contacts, current measurement, and interconnection, and connects to the optical detection module.
Optional HMI and quenching device
Light detection module
ARC-LS3T Up to 3 L optical S-type sensors and one rapid T-type tear output
Elective Module
ARC-HMI – Human-Machine Interface for extended arc protection system
Arc-Line-Earth-A – IGN launch module, including system cables for use as external quenching equipment
Light sensor
ARC-LLS Light Line S Sensor
Length: 10/15/20/25 meters
The active sensor component reduces the length by 5 meters
ARC-LPS Light Point S Sensor
Length: 3/5/10 meters
The middle size is optional
Simple Arc Protection System
Feature:
Stainless steel housing
Installation of DIN rail TS35 is simple
Up to 31 optical detection modules can be connected to the main module via INTERLINK communication
The maximum interconnection length between the main module and the last connected optical detection module is up to 100 meters
15 display states and alarms
3 quick binary outputs, with a ≤ tripping time of 2 milliseconds
1 binary output for alarm indication
1 binary watchdog output (system supervision)
No parameter setting required!
Expand the arc protection system
(Requires parameterization)
SYMAP®ARC
Feature:
It includes all the functions of the first level!
And…
Voltage and current measurement
The rate of change of current DI/DT is used as an additional safety trip standard under fault conditions
The SYMAP®ARC parameter tool (SAPT) enables the system to be easily configured and adapted for various applications
Selective cable compartment selection Options
Optional connection ARC-IGN-A can be made to serve as an independent quenching device.
Optional connection of the separate human-machine interface ARC-HMI is available, facilitating user-friendly operation.
Complex Arc Protection System
Feature:
It includes all the functions of Level 2!
And…
Up to 8 extended arc protection systems can be connected via MASTERLINK.
The maximum length of MASTERLINK between two ARC-ME main modules is up to 100 meters.
MASTERLINK topology: line or ring (redundant)
Zone protection
