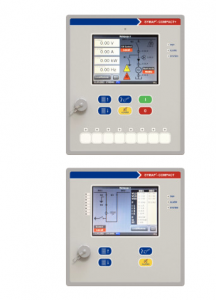

SYMAP® Compact
SYMAP®Comapct is a digital protection and control device for low-voltage and medium-voltage systems, equipped with three powerful processors, and provides comprehensive protection functions for generators, motors (synchronous and asynchronous), transformers, power lines, and distribution systems.
The protection functions can be activated and used simultaneously without any restrictions.
To ensure maximum flexibility during the debugging and usage process, both digital and analog outputs can be connected to the main control panel through SYMAP®Compact+.
Additionally, SYMAP®Compact+ can communicate with site control technology through various serial interfaces and different data protocols. The device’s rich programming options and user-friendly operating system make the application selection more extensive and cost-effective. Application
Digital protection and control systems for power generation and distribution systems for low, medium and high voltage applications
SYMAP® Compact
Protection and control device applicable to safety levels F0. F1. F2. F3 and F4 and generator protection type GC
SYMAP®Compact+
Suitable for protection and control devices with safety levels +F1. +F2. +F3 and +F4. as well as generator protection types with enhanced measurement and communication functions +GC
Application
SYMAP®Comapct
Overvoltage protection
Differential protection
Generator protection, control and monitoring
Feeder protection, control and monitoring
Transformer protection
Motor protection
Distance protection
Reducer protection
Voltage and frequency protection
Synchronization check Automatic synchronization
Concurrency and protection
Dynamic grid support
RING protection and communication redundancy
Protection for low-voltage and medium-voltage soft starters
GCP generator control panel SYNC+P
Bay area control
Power generation and power plant controller (EZA/EZE) Characteristic
Stainless steel casing, aluminum front panel
Shallow and deep – with terminal plug depth of 90 millimeters
3 status LED lights
Full-color touch screen display
Remote display/separate human-machine interface (optional)
Customizable menu interface
Multi-language HMI
8 programmable LED lights
Plug-and-play connection
Can be expanded via additional I/O boards
USB connection as standard
RS 485 standard, Modbus RTU
Control and interlock of up to 8 switch elements
IEC: 61850. 60870-5-103. 104. Modbus RTU/TCP, Profibus DP, CANBUS
Up to 5 communication protocols can be used simultaneously
High-speed goose
4 processors, ensuring ultimate reliability and speed
Self-diagnosis
Various protection functions included in the standard version
4 independent protection setting groups
Independent and simultaneous protection for CT1 and CT2
Event-driven architecture system with strong scalability
Easy-to-use SYMAP® compact parameter tool
General features:
Based on U/I measurement input to achieve the maximum protection function
Small machine state
Conformity testing according to VDE 4110 and 4120
Color touch screen
Multi-language HMI
Can be expanded through additional I/O boards
Reactive power undervoltage protection (QU)
Power plant controller (EZA) – SYMAP®Compact+
Special features of SYMAP®Compact+GC:
Reactive power under-voltage protection (QU)
Independent overcurrent hysteresis protection (UMZ)
Network and system protection (NA)
Distance protection ANSI 21
Power plant controller (EZA)
SYMAP®Compact+ HMI is highly customizable and user-friendly.
Display
Large full-color touch screen, with a user-friendly interface
User-defined function keys
4 configurable user pages: single line, measurement indication, text, button, bar chart, graphics, configurable background, graphic elements, button color, page links…
Adjustable parameters through HMI
Password protection for access and user-level roles Key
Touch screen and buttons on the front panel
LED (standard component)
8 programmable LEDs (optional key buttons)
3 status LEDs (system and user programmable status)
Graphical programmable LED lights on the touch screen Options
6 programmable LEDs.
Switch function (optional)
