WOODWARD 8446-1019 RP-3000 Remote Panel

The same part number of Woodward sometimes has different names depending on the application field. 8446-1019 is primarily identified as the RP-3000 remote control panel (used for the easYgen series), and in some industrial channels, it is also classified as a digital speed controller component.

1. Product Description

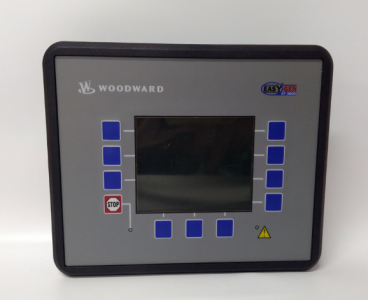

The Woodward 8446-1019 is primarily used as the RP-3000 remote panel. It is a remote operation terminal specifically designed for the easYgen-3000 series generator set controllers. Through the CAN bus connection, this panel can fully mirror the operation interface of the main controller, enabling users to conduct real-time monitoring, parameter configuration, and start/stop operations from locations far away from the generator set (such as control rooms, bridge decks, etc.).

Core functions: Remote monitoring, parameter adjustment, alarm management, multilingual support.

Main components: High-resolution backlit display screen, sealed operation buttons, aluminum alloy industrial casing.

2. Technical Data Sheet

Model: 8446-1019 / RP-300

Supply Voltage: 12/24 Vdc (The range is usually 8–40 Vdc)

Communication Interface (Interface): CAN Bus (used for communication with the easYgen controller)

Insulation Voltage: A continuous 40 Vdc for a 1-second test can reach up to 100 Vdc.

Display screen: 4.2-inch multi-functional display with adaptive backlighting

Protection Level (Protection): The front panel reaches IP65 (when installed on the cabinet door), and the enclosure is IP20.

Operating Temperature: -20 °C to +70 °C

Weight: Approximately 1.5 – 2.0 kg

3. Related Models

This panel must be used in conjunction with Woodward’s main controller:

easYgen-3100/3200: Standard Generator Control System.

easYgen-3400/3500: Enhanced Generator Set Control System.

8446-1018: Another configuration version of the RP-3000 (P1).

8440-19xx series: Common part numbers of the main controller.

4. Application Cases (Hospital and Data Center)

Hospital and Data Center: Without entering the generator room, manage the status of the backup power system from the central control room.

Vessels and Offshore Platforms (Marine): The control panels will be installed on the bridge (Bridge), while the generator sets will be located in the engine room at the bottom.

Outdoor Switchgear: Operators can safely make grid connection and load distribution adjustments through this panel from within the room.

Mobile power station: Convenient for directly reading parameters and operating outside the vehicle-mounted control cabinet.

5. Product Advantages and Features (Product Advantages and Features)

Full Mirroring: It features an identical operation logic and display interface to the easYgen host, eliminating the need for relearning.

Multilingual support: Designed for global applications, it enables quick switching of display languages within the menu.

High security: Supports password protection function to prevent unauthorized personnel from modifying the core control parameters remotely.

Sturdy and durable: Equipped with an industrial-grade aluminum alloy casing and shock-resistant design, it meets the demanding requirements of harsh mechanical environments.

Integrated Diagnosis: It enables real-time viewing of various alarms, historical event records, and real-time waveform data of the generator set.

6. Other Models in the Series

The Woodward remote display and monitoring series includes:

RP-3000XT: A remote panel specially designed for the new generation of easYgen-3000XT series.

RP-1200: A compact and simple remote display unit.

easYgen-3200-P1/P2: The main controllers corresponding to different levels of function packages.

8446-1019
