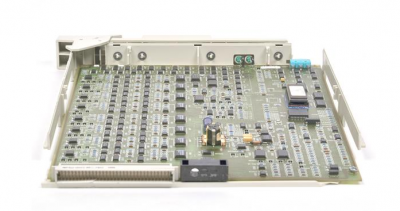

51304672-150 Honeywell Analog Output Module

Process Manager (PM), Advanced Process Manager (APM) and High Performance Process Manager (HPM)

Common Set of IOPs and FTAs

All IOPs and FTAs are Usable by All (3) Controllers

The Honeywell TPS Process Manager I/O is made up of of Honeywell’s Process Manager (PM), Advanced Process Manager (APM) and High Performance Process Manager (HPM) system control and data acquisition devices for industrial process applications.

They represent a powerful combination of cost-effective Honeywell controllers which can be applied to solve a broad range of industrial process control problems.

The PM, APM, HPM, and EHPM offer highly flexible I/O (input/output) functions for both data monitoring and control.

One of the unique features of this family of controllers is its common set of Input/Output Processors (IOPs) and Field Termination Assemblies (FTAs).   All IOPs and FTAs are usable by all three controllers (with only minor exceptions).

I/O Processors, along with Field Termination Assemblies (FTAs), perform input and output scanning and processing on all field PM/APM/HPM/EHPM I/O.

A redundant I/O Link is standard for maximum security.

51304672-150

Optionally, High Level Analog Input, Smart Transmitter Interface, Analog Output, Digital Input and Digital Output processors can be redundant.

I/O processing is performed separately from control processing functions so that I/O scan rates are completely independent of I/O quantity, controller loading, processing, and alarming.

This partitioning of functions allows more efficient use of advanced Control Processor capability and provides for future I/O expansion.

ATTENTION

For the Legacy systems, it is specifically mentioned in the guide wherever applicable. The other

text is applicable to the new HC900 system. Modems are not qualified with the new HC900

system.

Checking HC900 Model Numbers for Compatibility

ATTENTION

Be sure to check your model numbers for compatibility before installation. For a HC900 system to

be fully compatible, all components must have matching model numbers.

Each component’s model number format is XXXXXXX–XXYY-ZZ. For example, HC900 CPU is 900C71R-0000

40. For redundant CPU systems, component model numbers ZZ numbers must match. For non-redundant CPU

systems, component model numbers YY numbers must match. See examples below.

Example of a compatible redundant system

Component

Model Number XXXXXXX-XXYY-ZZ

HC900 CPU

900C71R-0000-40

Scanner 2

900C73R-0000-40

HC Designer Software

900W01-0040-40

Manuals CD

900ME1-0040-40

Example of a compatible non-redundant system

Component

Model Number XXXXXX-XXYY-ZZ

HC900 CPU

900C51-0040-00

Scanner 1

900C53-0040-00

HC Designer Software

900W01-0040-40

Manuals CD

900ME1-0040-40
