Induction terminal board IS410TRLYS1B

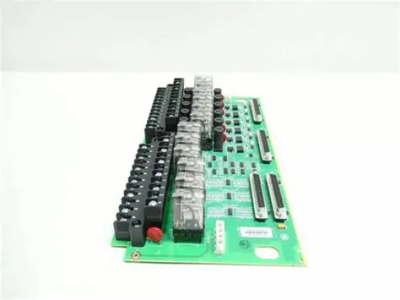

The GE IS410TRLYS1B is a 12-channel Form-C relay output with coil induction terminal board of the GE Mark VIeS series.

It is compatible with simplex or TMR (Triple Module Redundancy) configurations and is commonly used in industrial control scenarios such as gas turbines to achieve the conversion of weak current control signals to strong current output and coil status monitoring. The following are its core information and technical details:

I. Core Positioning and Basic Attributes

Project parameters

Model IS410TRLYS1B

Brand GE (General Electric)

Series Mark VIeS

Function: 12-channel Form -C relay output + coil induction monitoring

Redundancy supports simplex or TMR

Accompanying I/O package IS420YDOAS1B (to be ordered separately, quantity 1 or 3)

Install with terminal blocks and cover plates, compatible with the layout of 7-inch T-shaped terminal boards

Ii. Key Technical Specifications

Channel configuration: 12 Form -C (1 normally open + 1 normally closed) relay output channels.

Contact rating

Voltage specification rated current

24V DC    8A

48V DC 1.2A

125V DC 0.6A

120/240V AC    3A

Coil induction: Real-time monitoring of the on-off status, current and other conditions of the first 6 coils, and feedback to the control system to achieve fault diagnosis and status closed-loop.

Iii. Core Functions and Applications

IS410TRLYS1B

Signal conversion and isolation: Convert the weak current instructions of the control system into strong current drive signals, isolate the circuits on the control side from those on the field side, protect the controller, and adapt to loads such as motors, contactors, and solenoid valves.

Coil status monitoring: The first 6 channels are equipped with coil induction, which can diagnose faults such as open circuit, short circuit and overload of the coil, enhancing the reliability and maintainability of the system.

Typical applications: Mark VIeS gas turbine control, key actuator control for power generation and industrial automation, and redundant systems adapted to high reliability requirements.

Iv. Selection and Supporting Tips

Redundant configuration: Three IS420YDOAS1B I/O packets are required for the TMR mode, and one for the simplex mode.

Load matching: Select channels based on the on-site voltage/current to avoid exceeding the contact rating.

Spare parts and maintenance: It is recommended to retain spare parts of the same model and select them separately from IS410TRLYS2F (TMR normally closed voting contact type).

V. Application Scenarios and Advantages

Core scenarios: Gas turbines, steam turbines, combined cycle power generation and other power and heavy industry control.

Core advantages: Coil induction enables fault early warning, redundant design is suitable for safety-critical scenarios, and Form-C contacts are compatible with multiple types of control logic.
