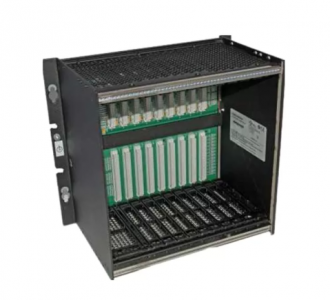

IC698CHS009 Rx7i PACsystem I/O Rack Module

GE IC698CHS009 Rx7i PACsystem I/O Rack Module

Overview

The IC698CHS009 is a compact, 9-slot I/O rack for the GE Fanuc Rx7i PACsystem.

This rear-mount enclosure optimizes I/O module management within industrial automation setups.

Key Features

Power Supply: Supports 100W and 350W power supplies for flexible system configuration.

I/O Capacity: Accommodates up to 9 I/O modules to meet various input and output needs.

Ease of Use: Uses software-based I/O addressing, eliminating the need for DIP switches or jumpers.

Efficient Design: Manages interrupt acknowledgment and bus grant signals automatically via daisy-chain slot sensing.

IC698CHS009

Technical Specifications

Operating Voltage: 5 to 12 VDC

I/O Slots: 9 slots (8 standard, 1 wide)

Slot Dimensions:

Slots 1-8: 20mm for single-width modules

Slot 9: 40.6mm for double-width modules

Mounting: Rear mounting

Dimensions (approximate): 283 x 320 x 190 mm

Compatibility: Rx7i CPUs, I/O modules, and power modules
