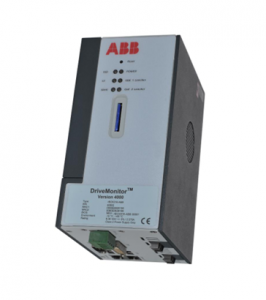

ABB DRIVEMONITOR VERSION 4000 DRIVE MODULE RBOX316-ABB-00
The ABB DriveMonitor Version 4000 is an intelligent monitoring and diagnosis system for ABB medium-voltage frequency converters, while the RBOX316-ABB-00 is the core hardware module of this system (commonly known as the rBOX316 module).
It is used for on-site data collection, processing and connection with the software layer to achieve remote and local monitoring.
The following are the core information and key details
Core positioning and relationships
The core role of component positioning
The DriveMonitor V4000 software + hardware integrated diagnostic tool enables real-time access to frequency converters, configuration parameters, long-term status monitoring, fault diagnosis and trend analysis, reducing downtime risks and maintenance costs
The RBOX316-ABB-00 hardware core module is installed inside the inverter cabinet, collecting analog/digital signals, processing data, and providing communication interfaces. It serves as a “data bridge” between the software and the inverter.
Key features of RBOX316-ABB-00
Compatibility:
Specifically designed for medium-voltage frequency converters, it is compatible with multiple control methods and supports the integration of both new and old systems.
Signal processing:
Integrates isolated input/output channels, collects key parameters such as voltage, current, and temperature, and ensures data accuracy and anti-interference capability.
Communication capability:
Supports mainstream protocols such as industrial Ethernet and fieldbus, enabling local debugging and remote cloud access.
Reliability:
Industrial-grade design, adaptable to harsh environments, and in conjunction with DriveMonitor software, it enables automatic data upload and analysis.
Typical applications and values
Application scenarios:
Condition monitoring and predictive maintenance of motor-driven equipment such as water pumps, fans, compressors, and conveyor belts.
Core values:
Early fault warning, shortening MTTR (Mean Time to Repair), optimizing maintenance plans, and enhancing process stability.
Quick start and query suggestions
RBOX316-ABB-00
Installation:
Install the RBOX316-ABB-00 in the inverter control cabinet, connect the wires as per the manual and configure the communication parameters.
Software integration:
Install the DriveMonitor V4000 client, establish a connection with the module via Ethernet/bus, and import driver parameters and monitoring templates.
Information Inquiry
Official channel:
Enter the part number RBOX316-ABB-00 on the support page of the ABB official website to obtain the manual, technical specifications and compatibility list.
Local support:
Contact ABB dealers or technical teams to confirm module versions, spare parts replacement and upgrade paths.
Common associations and precautions
Modules of the same series:
For instance, RBOX316-ABB-002 is a derivative model with an extended channel, suitable for more signal acquisition requirements.
Version matching:
DriveMonitor V4000 must be compatible with the firmware version of the RBOX316 module. Please check the compatibility matrix before upgrading.
Security Specification:
Enable encrypted communication when remotely accessing and follow the best practices of industrial network security.
