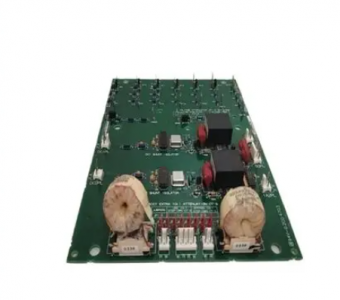

DS200SHVMG1AGE Analog I/O board

The DS200SHVMG1AGE is an analog I/O board produced by General Electric (GE), belonging to the Mark V series control system.

Product type: High-voltage M-type frame interface board.

Main function:

It is used for connecting and controlling high-voltage equipment, such as large motors and transformers.

It can convert the shunt signal from -500 to 500mV to a differential frequency output of 0 to 500kHz, and also has a signal attenuation function.

The amplitude of the input signal can be adjusted by connecting DC positive and negative resistors in series.

Product parameters:

The working voltage is usually 220V AC.

The weight is approximately 0.1KG. Supports standard industrial communication protocols such as MODBUS and PROFIBUS; The operating temperature range is from -20 °C to + 86°C. There are 8 slots.

It is an analog input/output module, supporting digital signals and relay signals, but not output signals.

Product features:

It adopts a modular design, which is easy to install, maintain and replace.

Using industrial-grade components, it features high reliability and is suitable for harsh industrial environments.

Possess high-precision signal conversion and control capabilities.

Application field:

Widely used in power systems for the control and monitoring of large generators and transformers in power plants.

In the field of industrial automation, it can be used for production line automation, robot control and process control.

It is also applicable to industries such as chemical engineering, petroleum, and metallurgy, and is used to monitor and control key parameters in the production process.
