DS200SHVMG1AFE SCR High Voltage Interface Board

DS200SHVMG1AFE

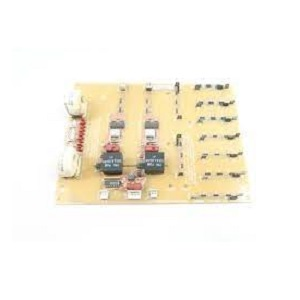

The DS200SHVMG1AFE SCR High Voltage Interface Board

Manufacturer    GE General Electric

Series    Mark V

Part Number    DS200SHVMG1AFE

Functional Description    SCR High Voltage M-Frame Interface Board

Mark V Series Grouping    Group 1

Backwards-Compatibility    1st two revisions

About the DS200SHVMG1AFE

DS200SHVMG1AFE is a General Electric designed high voltage M-frame interface board.

As a member of the Mark V series, this card can be used across a range of GE brand drives and exciters, although the Mark V Series has specific applications in the control and management systems of wind, steam, and gas turbine automated drive assemblies.

DS200SHVMG1AFE

An interface medium is provided when this board is installed.

Communications between the SCR bridge of the M-frame drive, the power supply board (either DCFB or SDCI), and the power connect card (PCCA) are created with this interface board.

While this DS200SHVMG1AFE printed circuit board or PCB for short is definable as a SCR High Voltage M-frame Interface Board, it is by no means considered the original product of this functionality to exist within the Mark V Turbine Control System Series;

that would be the DS200SHVMG1 SCR High Voltage M-frame Interface Board missing all three of this DS200SHVMG1AFE product’s three significant product revisions.

The Mark V Turbine Control System Series that this DS200SHVMG1AFE product belongs to is additionally lauded on the greater automated industrial marketplace as it is one of the lastly-developed GE Mark product series to utilize their patented Speedtronic control system technology first seen with the release of the Mark I Series in the mid to late 1960s.
