GE PACSystems* RX7i IC698CPE010/CPE020

PACSystems* RX7i

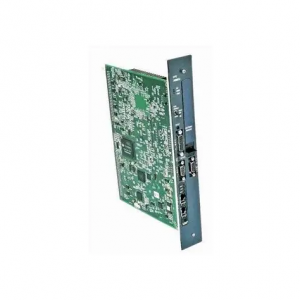

IC698CPE010/CPE020

The RX7i CPUs are programmed and configured by the programming software to perform real

time control of machines, processes, and material handling systems. The CPU communicates

with I/O and smart option modules over a rack-mounted backplane using the VME64 Standard

format. It communicates with the programmer and HMI devices via the embedded Ethernet ports

or a serial port using SNP Slave protocol.

CPE010: 300MHz Celeron microprocessor

CPE020: 700MHz Pentium III microprocessor

Features

▪ Contains 10 Mbytes of battery-backed user memory and 10 Mbytes of non-volatile flash user

memory.

▪ Provides access to bulk memory via reference table %W.

▪ Configurable data and program memory.

▪ Programming in Ladder Diagram, C, Structured Text, and Function Block Diagram.

▪ Supports auto-located Symbolic Variables that can use any amount of user memory.

▪ Reference table sizes include 32Kbits for discrete %I and %Q and up to 32K words each for

analog %AI and %AQ.

▪ Supports Series 90-70 discrete and analog I/O, communications, and other modules. For a

list of modules supported, refer to the PACSystems RX7i Installation Manual, GFK-2223.

▪ Supports all VME modules supported by Series 90-70.

▪ Supports RX7i data monitoring over the web. Allows a combined total of up to 16 web server

and FTP connections.

IC698CPE020

▪ Supports up to 512 program blocks. Maximum size for a block is 128KB.

▪ Test Edit mode allows you to easily test modifications to a running program.

▪ Bit-in-word referencing.

▪ Battery-backed calendar clock.

▪ In-system upgradeable firmware.

▪ Three isolated serial ports: an RS-485 serial port, an RS-232 serial port, and an RS-232

Ethernet station manager serial port.

▪ The embedded Ethernet interface provides:

 Data exchange using Ethernet Global Data (EGD)

 TCP/IP communication services using SRTP

 Support for SRTP Channels, Modbus/TCP Server, and Modbus/TCP Client

 Full programming and configuration services

 Comprehensive station management and diagnostic tools

 Two full-duplex 10BaseT/100BaseT/TX (RJ-45 Connector) ports with an internal network

switch providing auto-negotiated network speed, duplex mode, and crossover detection.

 User-configurable Redundant IP address

 Time synchronization to SNTP time server on Ethernet network (when used with

Release 5.00 or later CPU module).
