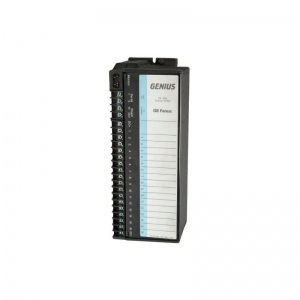

GE IC660BBD022 I/O module

IC660BBD022

Technical specifications for IC660BBD022

Manufacturer    GE Fanuc Emerson

Product Line    Genius I-O

Part Number    IC660BBD022

Weight    3.25 lbs (1.47 kg)

Description    Source I/O block

Product Description    Source Block I/O

Circuits    16

No. of I/O    16

No. of circuits    16 I/O circuits

Points per common    One group of 16

Input signal voltage    24 / 48 VDC

Load current    2 Amperes

Operating voltage    18-30VDC

Input processing time    1.7 ms

Nominal voltage    24VDC

Input diagnostics    Open wire, Overtemperature, Failed Switch

Heat dissipation    68.8 Watts with 2 Amperes

Communication protocol    Genius Protocol

Output Current    2 Amperes per circuit

Max. ripple    10%

Input Response time    1.7 msec plus configurable filter

maximum inrush current    10 Amperes up to 10 ms

Output turn on deplay    1 millisecond

Output response time    1.0 msec

Maximum switching frequency    Once per second

Temperature    0-60 degrees Celsius

Filter time    5 to 100mS

Output diagnostics    Short Circuit, Overload, No Load, Failed Switch, Overtemperature

Block to Block Isolation    1500V for one minute

Compatible Electronics assembly    IC660EBD021

LEDs (I/O Block)    Unit OK, I/O Enabled

Compatible terminal base assembly    IC660TSD021

Size (HxWxD)    8.83″ (22.44cm) x 3.50″ (8.89cm) x 3.94″ (10.00cm)

Operating Temperature    0 Degree to 60 Degree Celsius

Storage temperature of    -40 Degree Celsius to 100 Degree Celsius

Humidity    5-95% non-condensing

IC660BBD022

Description

The IC660BBD022 is a Genius protocol-enabled module that is part of the Genius I/O Block series of distributed I/O modules.

This device is a stand-alone, single-node I/O station with Sixteen (16) I/O circuits that support source wiring configuration.

The IC660BBD022 features Sixteen (16) I/O circuits that operate at 24 / 48 VDC. Each channel of this module is configurable as input and output and capable of performing data exchange via the provided Genius I/O bus terminals, allowing communication between GE Programmable Logic and Automation Controller s (PLC / PAC) as well as modules such as Bus Controllers, PC Interface Modules, Human Machine Interface (HMI) as well as 3rd party devices.

This module is a panel-mounted, stand-alone device that cones with an open-type enclosure therefore, must be installed within an enclosure that provides adequate protection against industrial contaminants.

This module can be remotely mounted away from partner devices at a maximum distance of 7500 feet. It also permits daisy-chaining of other I/O blocks to form a Genius I/O network.

The module’s operation can be configured locally using a hand-Held Monitor (HHM) via the HHM port installed on top of the terminal assembly. It may also be configured remotely using the programming software of the host controller.

The module’s input channels accept 12 / 24 VDC nominal voltages with 1.7 ms actuation delay. Similarly, the output channels generate 2 Amperes of current per circuit with a maximum turn-on delay of 1 ms.

This module is made of Two (2) components particularly, the IC660EBD020 Electronics assembly and IC660TBD022 Terminal base assembly
