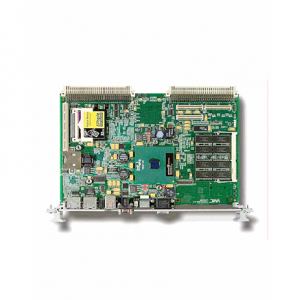

GE Fanuc Automation VMIVME-7750 Specifications

GE Fanuc Automation VMIVME-7750 Specifications

Intel® Pentium® III Processor

Based VME Single Board

Computer

Features:

• Up to 1.26 GHz Pentium® III processor with 512 Kbyte

advanced transfer cache

• Up to 512 Mbyte PC133 SDRAM using a single SODIMM

• Internal AGP SVGA controller with 4 Mbyte display cache

• Dual Etherne

• 133 MHz system bus via Intel® 815E chipset

t controllers supporting 10BaseT and 100BaseTX

• interfaces

• Remote Ethernet boo

ting

•

• PMC expansion site

Operating system support for Windows® XP, Wind

VxWorks®, Solaris™, QNX®, LynxOS®, and Linux®

ows 2000.

Functional Characteristics

Microprocessor: The VMIVME-7750 brings the Intel Pentium III

processor to VME, offering processor speeds up to 1.26 GHz.  The

Pentium III processor has 32-bit addressing and a 64-bit data

bus.  Its superscalar architecture allows three instructions to be

executed per clock cycle.  A dynamic branch prediction unit,

separate instruction and data caches, and MMX™ technology

also increase the processor’s performance.  The Pentium III

processor also provides 256 Kbyte (1.26 GHz has 512 Kbyte) of

advanced transfer cache (on-die, full speed level 2 cache) using

dual independent bus architecture for high bandwidth and

performance.  This L2 cache operates at the same clock

frequency as the processor, thus improving performance

Ethernet Controller: The VMIVME-7750 supports Ethernet LANs

with two Intel Ethernet controllers (one 82559 and the other

internal to Intel’s chipset ICH2). 10BaseT and 100BaseTX options

are supported via two RJ45 connectors. Remote LAN booting is

supported.

Remote Ethernet Booting: The VMIVME-7750 utilizes Lanworks

Technologies, Inc.’s BootWare®. BootWare provides the ability to

remotely boot the VMIVME-7750 using NetWare, TCP/IP, or RPL

network protocols.

BootWare Features:

• NetWare, TCP/IP, RPL network protocol support

• Unparalleled boot sector virus protection

• Detailed boot configuration screens

• Comprehensive diagnostics

• Optional disabling of local boots

• Dual-boot option lets users select network or local booting

Serial Ports: Two 16550-compatible serial ports are featured on

the VMIVME-7750 front panel. The serial channel has a 16-b

FIFO to support baud rates up to 115 Kbaud. Requires two

micro-DB-9 to

standard DB-9 adapters, GE Fanuc P/N 360

010050-001.

Keyboard and Mouse Ports: The VMIVME-7750 has a comb

PS/2 keyb

oard and mouse connector. A Y-adapter cable is

included.

Flash Memory: The VMIVME-7750 provides up to 1 Gbyte of IDE

CompactFlash memory accessible through the secondary ID

port. The VMIVME-7750 BIOS includes a

board to boot from the Flash memory.

n option to allow the

Timers: The VMIVME-7750 provides the user with two 16-bit

timers and two 32-bit timers (in addition to system timers).

VMIVME-7750
