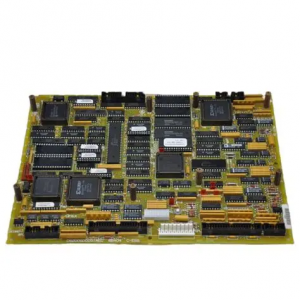

GE DS200SDCCG1AEC Drive Control Card

GE DS200SDCCG1AEC Drive Control Card

Description

The GE Fanuc DS200SDCCG1AEC is a Drive Control Card designed for use in GE’s industrial control systems.

This module is engineered to manage and control the operations of drives, offering reliable performance and flexibility through its configurable hardware.

The card supports multiple microprocessors and provides precise control in a wide range of industrial applications.

Key Features:

Multi-Microprocessor Design: Equipped with 3 microprocessors for enhanced processing power.

Flexible Configuration: Configurable hardware for tailored performance to meet specific system needs.

Test Points for Diagnostics: Metal posts are provided for easy signal path probing, simplifying maintenance and troubleshooting.

Jumpers for Customization: Features Berg-type and Wire Jumpers for system customization.

DS200SDCCG1AEC

Technical Specifications:

Parameter    Description

Part Number    DS200SDCCG1AEC

Manufacturer    General Electric (GE)

Product Type    Drive Control Card

Microprocessors    3 microprocessors

Memory    RAM accessible by multiple microprocessors simultaneously

Test Points    Metal posts for probing signal paths

Hardware Jumpers    Berg-Type Jumpers (JP nomenclature) and Wire Jumpers (WJ nomenclature)

Operating Temperature Range    -40°C to +85°C (-40°F to +185°F)

Dimensions (L x W x H)    15 cm (5.91 in) x 12 cm (4.72 in) x 3 cm (1.18 in)

Weight    0.5 kg (1.10 lbs)

Power Consumption    15 W
