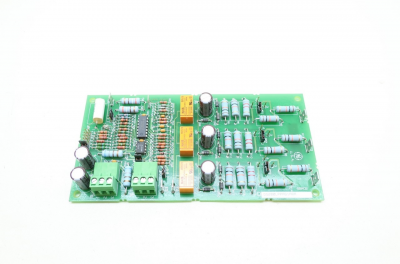

The General Electric DS200LPPAG1AAA Line Protection Panel Board
About the DS200LPPAG1AAA
This DS200LPPAG1AAA product offering is a printed circuit board originally manufactured for placement in General Electric’s Mark V Turbine Control System Series.
This series is also one of the final General Electric product series to make use of the company’s patented Speedtronic control system technology first introduced in the later 1960s.
This DS200LPPAG1AAA printed circuit board or PCB for short is better-definable through its official functional product description as a Line Protection Panel Board, as included in the DS200LPPAG1AAA instructional manual attached above.
This DS200LPPAG1AAA PCB is not the originally-designed product of its functionality to make an appearance within the Mark V;
that would be the DS200LPPAG1 parent Line Protection Panel Board missing all three of the DS200LPPAG1AAA PCB’s three significant product revisions.
Hardware Tips and Specifications
DS200LPPAG1AAA
As with any Mark V Turbine Control System Series product offering, the DS200LPPAG1AAA PCB’s assembly is accompanied by its own series of functionality-enhancing hardware component inclusions and specifications.
The GE Line Protection Board, DS200LPPAG1AAA, features seven jumpers and two terminal blocks with three terminals on each.
The jumpers are identified as JP1 through JP7. The GE Line Protection Board DS200LPPAG1AAA also contains test points.
The DS200LPPAG1AAA board is installed on standoffs on another component of the drive. The signal wires that connect to the board originate on the other component.
Luckily enough for the purposes of this DS200LPPAG1AAA Board personalized product page, the specific applications and functions of each jumper in this DS200LPPAG1AAA Board’s assembly has been described in its originally-printed instructional manual materials. The DS200LPPAG1AAA Board’s seven jumpers include:
The JP1. JP2. and JP3 MOV or ac line filter blown fuse indication jumpers
The JP4 and JP7 ac or dc side connection analog ground current sensing jumpers
The JP5 grounding resistor bridge voltage application jumper
The JP6 SCR ripple filter jumper
