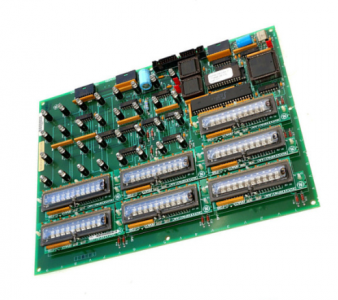

The DS200KLDBG1ABC Key/LED Display Board

About the DS200KLDBG1ABC

The DS200KLDBG1ABC is a GE component used within the Mark V Speedtronic system.

The Mark V was one of the last of the Speedtronic systems for the control of gas or steam turbines.

It is a flexible microprocessor-based control system with TMR architecture, designed with built-in diagnostics and online maintenance.

The DS200KLDBG1ABC functions as a display board.

It is a large, rectangular board with only a few well-spaced components.

This includes thirty-two vertical light components placed in four lines of eight in the bottom right quadrant of the board.

Integrated circuits and resistor network arrays are placed between these lights.

More integrated circuits are clustered in the bottom left corner, including field programmable gate arrays and at least one oscillating chip.

The DS200KLDBG1ABC board has several board connectors, including two vertical pin components.

DS200KLDBG1ABC

The board has two jumper switches.

Various capacitors, diodes, and resistors are also made available to the assembly of this DS200KLDBG1ABC product offering;    hardware components of this type have been provided for various excess voltage-limiting and consuming purposes.

The top of the board is populated by seven LED displays.

These displays are designed for numerical display, using sixteen-segment digits.

The board is marked with codes like:

C-ESS

6BA01

The corners and edges of the board are drilled to allow for mounting.

Refer to technical support products like data sheets or user guides for more information.
