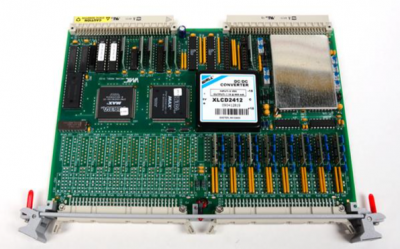

GE VMIVME-3122 High-Performance 16-bit Analog-to-Digital Converter Board

VMIVME-3122

High-Performance 16-bit

Analog-to-Digital Converter Board

The VMIVME-3122 is a member of VMIC’s extensive family of analog input/output

products for the VMEbus.    With 16-bit digitizing resolution, program-controlled gain,

selectable conversion rate, and automatic scanning of 64 differential or single-ended

analog inputs, the VMIVME-3122 provides exceptional dynamic range and analog

input channel density.   Various operating modes are supported, including

autoscanning, data bursts and external synchronization.   This board is designed to

interface directly with VMIC’s line of signal conditioning boards for digitizing the

outputs from thermocouples, RTDs and strain gages.

Individual channel gains can be downloaded for use during scanning operations, or

the board can be configured with a fixed gain that is common to all channels.

Multiple boards can be synchronized together to enable as many as 16 boards to

initiate each scan simultaneously.    An Interval Timer, Bus Interrupter, Channel

Counter and Midscan/Endscan flag simplify the monitoring of data within the dual

port data buffer.   The system applications that can benefit from the VMIVME-3122

capabilities include factory automation, process control, data acquisition systems,

training simulators and laboratory instrumentation.

The following brief overview of principal features illustrates the flexibility and

VMIVME-3122

performance that is available with the VMIVME-3122:

• 16. 32 or 64 differential or single-ended analog inputs

•16-bit A/D conversion

• 381 Hz to 100 kHz selectable scanning rate for high-performance option, 381 Hz

to 50 kHz for standard performance option

• Programmable gains of x1 or x10

Features of the VMIVME-3122 (Continued):

• A/D converter ranges of ±2.5 V, ±5 V, ±10 V, 0 to +5 V, 0 to +10 V

• Programmable channel gains

• 16- to 1.024-word dual port data buffer

• Operation in short I/O (A16), standard (A24), or extended (A32) data space

• Programmable channel block size and buffer size

• Optional low pass input filters

• Continuous and  burst operating modes

• Free running operation or external/internal triggering

• Bus interrupter for Midscan or Endscan indication

• Programmable interval timer for timed data bursts

• Direct cabling from VMIC signal conditioning boards

• Initializes after a reset in autoscan mode with gain = x1

Functional Description

The VMIVME-3122 (Figure 1 on page 15) is a high-resolution, 16-bit, 64-channel

Analog Scanning and Digitizing Input board for VMEbus system applications.

Dual-ported data memory, on-board timers, automatically controlled gain and a

programmable bus interrupter enable the VMIVME-3122 to support extensive analog

input traffic, with minimum involvement of the host processor.

Analog inputs are scanned and digitized sequentially.  The digital values are stored in

a dual port data buffer which can be accessed at any time from the VMEbus.   The gain

of each channel can be  programmed individually, or can be set in software for a fixed

gain that is common to all channels.   Channel gain is software selectable as x1 or x10.

A/D converter voltage ranges are jumper-selectable for ±2.5 V, ±5 V, ±10 V, 0 to 5 V

and 0 to 10 V.

When a system or program reset occurs, the board initializes in the 64-channel

autoscanning mode at a rate of 100 KHz and all channel gains are initialized to unity

(x1).   After a reset operation, the program can select the timed burst or triggered burst

modes, and can modify the block size, buffer size, and channel gains as necessary.

The channel block is adjustable as 1. 8. 16. 32 or 64 channels, and the data buffer size

can be selected from 16 to 1.024 data words in binary increments.

When in standard performance mode, the board must be reprogrammed after reset

for the 50 kHz scanning rate.  A value of $00F7 must be written to relative address

$0006.

Timed data bursts are controlled by an interval timer which can provide repetitive or

single-shot burst intervals of up to 687 sec.  A burst can consist of from

8 to 1.024-channel samples.   A data ready flag is available at the middle or end of a

scan, and an interrupt request can be generated simultaneously with the flag.   The

interrupt can also be initiated after a specific number of samples have been acquired
