GE DS215DMCBG1AZZ03A Circuit Board with Firmware

DS215DMCBG1AZZ03A Circuit Board with Firmware

Manufacturer    GE General Electric

Series    Mark V

The DS215DMCBG1AZZ03A is a board component manufactured by GE for use within their MKV Speedtronic system.

The DS215DMCBG1AZZ03A is a Drive board.  It offers updated hardware and/or firmware as compared to a like-named DS200 board.  This DS215DMCBG1AZZ03A product is not the originally-developed PCB of its specific Mark V Series functionality, as evidenced by its DS215DMCBG1AZZ03A functional product number’s attachment of the trailing “A” alphanumeric digit.

Hardware Tips and Specifications

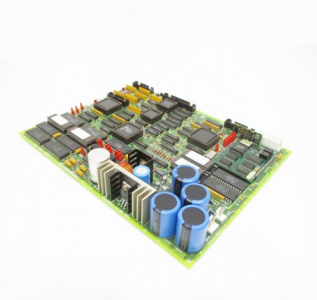

The DS215DMCBG1AZZ03A is a heavily populated board with the following specifications:

Five vertical cable connectors.  These include four male and one female connector

Three vertical header connectors

Two auxiliary boards

These include one vertically mounted board and one horizontally mounted board.  Both boards are located in the bottom left corner

Three stab-on connectors

Over twenty jumper switches

A reset switch located in its upper left quadrant

LED indicators

An inductor coil

TP test points for checking board voltages

Over fifty-five integrated circuits

These include oscillating chips, field programmable gate arrays, and EPROM chips for the storage of data

Several fuse components
