Foxboro RH924WA FCP280 Fiber Optic Network Adapter

Foxboro RH924WA FCP280 Fiber Optic Network Adapter

Overview:

The RH924WA is a specialized fiber optic adapter designed for the EcoStruxure Foxboro DCS Field Control Processor 280 (FCP280).

This adapter is crucial for ensuring seamless network connectivity by bridging the FCP280 to Ethernet switches within the Control Network, particularly in industrial automation systems.

Technical Specifications

Connector Type:

LC connectors (adapter end)

MT-RJ connector (switch end)

Cable Material:

Multimode fiber (MMF) 62.5/125 µm plenum

Cable Length:

Up to 50 meters (Schneider Electric supplied)

Up to 2 kilometers (user supplied)

Power Source:

Powered by the FCP280 baseplate

Operating Temperature:

-20 to 60°C (-4 to 140°F)

Storage Temperature:

-40 to +70°C (-40 to +158°F)

Humidity:

5 to 95% (non-condensing)

Vibration:

0.5 g (5 to 500 Hz)

Regulatory Compliance:

CE certified

EMC Directive 2014/30/EU

UL listed for Class I, Groups A-D; Division 2

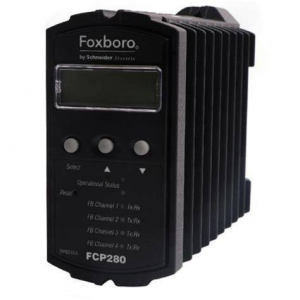

RH924WA

Features

Network Connectivity: Connects the FCP280 to the Control Network using fiber optic cables.

Reliability: Enhances reliability with fault-tolerant operation.

Durability: Suitable for harsh environments (Class G3).

Mounting: Requires no special cabinets for mounting.

Field Mounting: Certified for field mounting in enclosures.

Use Cases

The RH924WA adapter is essential in industrial automation systems, where robust and high-speed communication is required between the FCP280 and the Control Network.

Its robust design and compliance with stringent environmental and safety standards make it particularly suitable for challenging industrial environments.

This ensures reliable performance and connectivity even under harsh conditions.

Summary

The RH924WA fiber optic adapter is a critical component for industrial automation systems using the EcoStruxure Foxboro DCS Field Control Processor 280.

It offers reliable and fault-tolerant network connectivity, ensuring high-speed communication between the FCP280 and Ethernet switches. Its robust design, regulatory compliance, and suitability for harsh environments make it an ideal choice for maintaining efficient and reliable operations in industrial settings.
