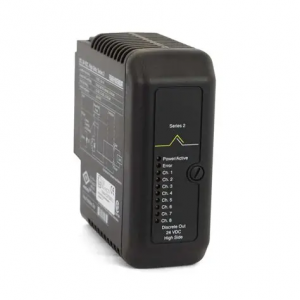

Emerson KJ3202X1-BA1 DO 8-Channel 24 VDC High-Side

Emerson KJ3202X1-BA1 DO 8-Channel 24 VDC High-Side

Power Specifications

Local Bus Power

Bussed Field Power

Field Circuit

12 VDC at 150 mA

30 VDC at 3 A

30 VDC at 1 A/Channel, 3 A/Card

Environmental Specifications

Ambient

Temperature

Shock

Vibration

Airborne

Contaminants

Relative Humidity

Terminal Block key

Position  -40°C to +70°C

10g ½ Sinewave for 11msec

1mm Peak to Peak from 2 to 13.2Hz;

0.7g from 13.2 to 150Hz

ISA-S71.04 –1985 Airborne

Contaminants Class G3

5 to 95% Non-Condensing IP 20 Rating

B6

KJ3202X1-BA1

Note: Refer to the product label for serial number

and location and date of manufacture.

Warning: This product has specific instructions for

installation, removal and operation in hazardous

areas.  Refer to document 12P2046 “DeltaV™

Scalable Process System Zone 2 Installation

Instructions”.   Other installation instructions are

available in the “DeltaV™ M-Series Hardware

Installation and Reference” manual.

Removal and Insertion

This unit cannot be removed or inserted with system

power energized unless the area is known to be

non‐hazardous and only one unit at a time may be

removed or inserted.

Non-sparking field circuits MUST be de-energized

before removing and inserting including the fused

terminal block.

A rotary keying system ensures compatibility

between I/O cards and terminal blocks after

installation is complete.  The terminal block must

have the keys set for the I/O card with which it is

used.

Maintenance and Adjustment

This unit contains no user serviceable parts and

should not be disassembled for any reason.

Calibration is not required.
