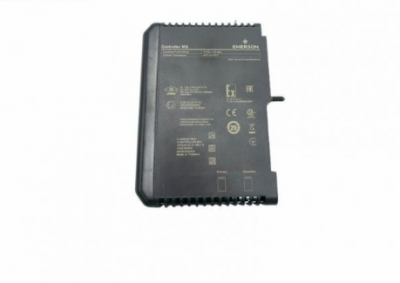

EMERSON VE3008 CE3008 KJ2005X1-MQ1 12P6381X042 MQ Controller

EMERSON VE3008 CE3008 KJ2005X1-MQ1 12P6381X042  MQ Controller

Hazardous Atmosphere

II 3G Ex nA IIC Gc

FM12ATEX0090U

IECEx FMG 12.0035U

Power Specifications

Local Bus Power

+5 VDC at 1.4 A

Environmental Specifications

Ambient

Temperature

Shock

Vibration

Airborne

Contaminants

KJ2005X1-MQ1

Relative Humidity -40°C to +70°C

10g ½ Sinewave for 11msec

1mm Peak to Peak from 2 to 13.2Hz;

0.7g from 13.2 to 150Hz

ISA-S71.04 –1985 Airborne

Contaminants Class G3

5 to 95% Non-Condensing

Note: Refer to the product label for serial number

and location and date of manufacture.

Warning: This product has specific instructions for

installation, removal and operation in hazardous

areas.  Refer to document 12P2046 “DeltaV™

Scalable Process System Zone 2 Installation

Instructions”.   Other installation instructions are

available in the “DeltaV™ M-Series Hardware

Installation and Reference” manual.

The communications network connected to the

DeltaV Remote Interface Unit must not be

connected to a source that generates or contains

under normal conditions a potential in excess of 60

VAC or 75 VDC.

Removal and Insertion

This unit cannot be removed or inserted with system

power energized unless the area is known to be

non-hazardous.

Maintenance and Adjustment

This unit contains no user serviceable parts and

should not be disassembled for any reason.

Calibration is not required.
