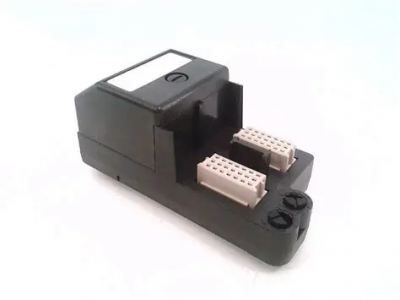

EMERSON KJ4001X1-CK1 40-Pin Mass Termination Block
KJ4001X1-CK1 40-Pin Mass Termination Block
Hazardous Atmosphere
II 3 G
EEx nA IIC T4
Nemko No. 02ATEX431U
Power Specifications
Input
30 VDC at 1 A per channel
Environmental Specifications
Ambient Temperature 0 to 70 oC
Shock
Vibration
Airborne
Contaminants
Relative Humidity
10 g half-sine wave for 11 ms
1 mm peak to peak from 2 to
13.2 Hz; 0.7 g from 13.2 to 150 Hz
ISA-S71.04 –1985 Airborne
Contaminants Class G3
5 to 95% Non-Condensing IP 20
Rating
Note: Refer to the product label for serial number
and location and date of manufacture. Refer also to
the wiring diagram on the left side of the card.
Warning: This product has specific instructions for
installation, removal and operation in hazardous
areas. Refer to document 12P2046. DeltaV
Scalable Process System Zone 2 Installation
Instructions. Other installation instructions are
available in the Installing Your DeltaV Automation
System manual.
Removal and Insertion
A rotary keying system ensures compatibility
between I/O cards and terminal blocks after
installation is complete. This terminal block must
have the keys set for the I/O card it is to be used
with.
KJ4001X1-CK1
Maintenance and Adjustment
This unit contains no user-serviceable parts and
should not be disassembled for any reason.
Calibration is not required.
