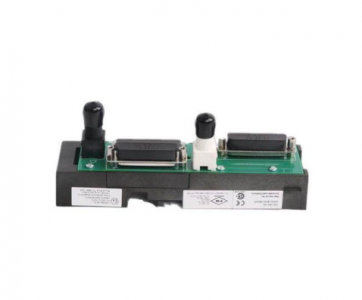

KJ4001X1-NA1 1-Wide I/O Carrier Extender

Right

Hazardous Atmosphere

II 3G Ex ec IIC Gc

FM16ATEX0056U

FM21UKEX0017U

CL.  I Div. 2 GP.  A,B,C,D

CL.  I Zone 2 AEx/Ex ec IIC Gc

FM17US0286U

FM17CA0145U

Power Specifications

Local Bus Power

12 VDC at 8 A

Environmental Specifications

Ambient

Temperature

Shock

Vibration

Airborne

Contaminants

KJ4001X1-NA1

Relative Humidity -40°C to +70°C

10g ½ Sinewave for 11msec

1mm Peak to Peak from 2 to 13.2Hz;

0.7g from 13.2 to 150Hz

ISA-S71.04 –1985 Airborne

Contaminants Class G3

5 to 95% Non-Condensing

Note: Refer to the product label for serial number

and location and date of manufacture.

Warning: This product has specific instructions for

installation, removal and operation in hazardous

areas.  Refer to document 12P2046 “DeltaV™

Scalable Process System Zone 2 Installation

Instructions”.   Other installation instructions are

available in the “DeltaV™ M-Series Hardware

Installation and Reference” manual.

Removal and Insertion

This unit cannot be removed or inserted with system

power energized. Power must be de-energized

before disconnecting any carriers or LocalBus

Extender cables.

No combination of I/O carriers and LocalBus

Extenders must exceed a length of 6.5 meters.

Interconnecting cable between enclosures must be

in conduit.

Maintenance and Adjustment

This unit contains no user serviceable parts and

should not be disassembled for any reason.

Calibration is not required.
