VP868 FPGA Card 6U VPX Dual Ultrascale FPGA and Zynq Processor

VP868 FPGA Card

6U VPX Dual Ultrascale FPGA and Zynq Processor

Overview

The VP868 is a high performance 6U OpenVPX (VITA-65) compliant plug-in module with advanced digital signal processing capabilities.

At the heart of the VP868 is a Zynq dual Arm-9 device for processing offload and board management.

Its processing power comes from two Xilinx UltraScale FPGAs with over 100Gb/s duplex inter-chip communication bandwidth.

An optional storage and I/O expansion module is available supporting SATA/PCIe solid state drive technologies.

The VP868 includes flexible I/O with two VITA 57.4 compliant FMC+ sites. The board includes support for both Kintex and Virtex UltraScale devices with a migration path to UltraScale+ devices.

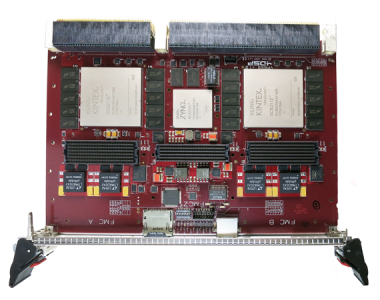

VP868

The module is ideal for applications requiring both high performance processing and I/O with the ability to scale from the lab to deployed rugged environments.

A single FPGA variant, the VP840. is available as well. Contact Abaco for more details.

Board Support Package

Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing the Stellar IP FPGA development tool,

and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.

Specifications

Form Factor   VPX 6U

FPGA Family   2x Ultrascale Kintex or Virtex

I/O   Configurable using FMCs

Memory   36 GB DDR3 SDRAM with ECC

Mezzanine  2x HSPC/FMC+

Other

Designed for the most demanding mission critical military/defense/ industrial applications where extreme FPGA processing and I/O bandwidth capabilities are needed

User Programmable FPGA   Kintex or Virtex Ultrascale
