Abaco VSR347D 3U VPX Rugged Virtual Secure Router

VSR347D

3U VPX Rugged Virtual Secure Router

Overview

Proven hardware, industry leading software

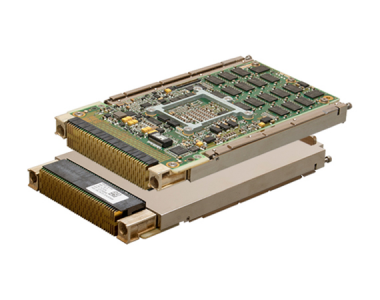

The VSR347D takes advantage of Abaco’s SBC347D hardware with an optimized environment running Juniper Networks’ vSRX Virtual Firewall,

providing high levels of network security and performance in a single 3U VPX slot.

High performance, low power

As the experts on the hardware of the SBC347D, we have been able to take advantage of that expertise to optimize the software environment of the VSR347D to maximize router performance whilst keeping power low.

Flexibility comes built in

Offering both 1000BASE-T and 10GBASE-KR ports makes the VSR347D ideally suited to acting as a secure gateway between multiple WANs (Wide Area Networks) and the LAN (Local Area Network) of any 3U VPX system.

Security in an insecure world

Keeping your data in and keeping intruders out, has never been more important. By providing a high performance firewall and advanced security to allow local networks access to the wider area,

the VSR347D is the essential gateway between the outside world and your local network.

VSR347D

Specifications

Cooling    Air, Conduction

Data Plane    PCIe

Ethernet   10 GigE, Gigabit Ethernet

Extended Temperature Range   Yes

Form Factor   3U

I/O   COM, Gigabit Ethernet, GPIO, SATA, SSD, USB

Maximum Memory    32 GB DDR4 SDRAM soldered with ECC

Network Operations   Firewalling, IPv4. IPv6 routing

Port Type    10/100/1000BaseT, 10GBASE-KR

Ports   6

Product Type   Virtual Secure Router

Serial I/O   2

Software   JUNOS (Juniper Operating System)
