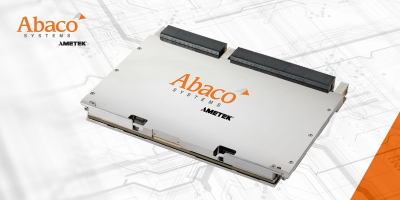

Abaco SWE550S 100GbE 6U VPX Switch Aligned to SOSA™ Standard

SWE550S

100GbE 6U VPX Switch Aligned to SOSA™ Standard

Overview

100GbE aligned to SOSA Standard

The NETernity SWE550S is a fully managed (Layer 2/3) rugged 6U VPX Ethernet switch designed for fast 25/100Gb Ethernet connectivity.

It is aligned with two SOSA switch profiles, offering rugged front panel fiber ports with Multi-fiber Push On (MPO) connectors as well as other connection options.

More bandwidth, more flexibility

Featuring a high-performance 3.2Tbps switch fabric, the SWE550S provides full wire-speed switching and data center grade protocols,

enabling 2.5 times the bandwidth of similar 10/40GbE VPX SOSA-aligned switches without a proportional increase in power consumption.

This switch offers greater network flexibility with all copper and fiber quad ports (fat pipes) reconfigurable to run as four discrete ports (thin pipes).

With up to 7x rear and 2x front panel 100G-SR4 rugged fiber ports, this switch provides versatile connectivity options for your system.

Copper and fiber quad ports (fat pipes) can be reconfigured to run as four discrete ports (thin pipes), offering greater network flexibility.

Each copper channel also supports speed downgrading from 25/100G to 10/40G, making it easy to switch between higher and lower speed endpoints.

This feature guarantees that the switches never slow down and always maintain traffic, without blocking network communications.

The SWE550S also available with a rear IO configuration that is compatible with the Abaco SWE540A Ethernet switch.

OpenWare

The switch fabric is combined with a highly efficient dual-core ARM-based processor running OpenWare™, Abaco’s switch management software, that can be modified to meet application needs.

SWE550S

OpenWare offers flexibility to manage the switches via serial console, SNMP, Telnet, SSH, or web interface.

Overwriting onboard non-volatile storage for security purposes is simplified with a built-in sanitization capability.

Part of the family

The SWE550S is an integral part of Abaco’s expanding portfolio of products that are equipped with 100GbE interfaces, such as SBC3612D, SBC3513. VP891. SBC6511. HPC2812. and VP461.

Specifications

Advanced Software Features:

Data center bridging (DCB) including PFC & ECN, Port splitting/grouping 10G/40GBASE-KR4

Control Interface

Ethernet, RS232 / LVCMOS, USB

Environmental

Level C operating temperature -40-+75 degrees C (up to X degrees TBD)

Ethernet

100GBASE-KR4. 100GBASE-SR4

Form Factor

6U VPX

Front I/O

Yes

Management Type

Fully Managed Layer-2/3+

Ruggedization

Air cooled rugged, Conduction cooled rugged

SOSA Slot Profile

SLT6-SWH-14F16U1U15U1J-12.8.1-0. SLT6-SWH-14F16U1U15U1J-12.8.1-3
