Abaco SWE450S 100GbE 3U VPX Switch Aligned to SOSA™ Standard

SWE450S

100GbE 3U VPX Switch Aligned to SOSA™ Standard

Overview

100GbE aligned to SOSA Standard

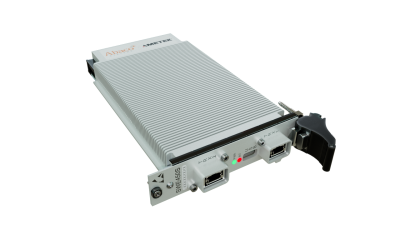

The NETernity SWE450S is a fully managed (Layer 2/3) rugged 3U VPX Ethernet switch designed for fast 25/100Gb Ethernet connectivity.

It is aligned with two SOSA switch profiles, offering rugged front panel fiber ports with Multi-fiber Push On (MPO) connectors as well as other connection options.

More bandwidth, more flexibility

Featuring a high-performance switch fabric, the SWE450S provides full wire-speed switching and data center grade protocols,

enabling 2.5 times the bandwidth of similar 10/40GbE 3U VPX SOSA-aligned switches without a proportional increase in power consumption.

This switch offers greater network flexibility with all copper and fiber quad ports (fat pipes) reconfigurable to run as four discrete ports (thin pipes).

The SWE450S offers each copper channel the ability to support speed downgrading from 25/100G to 10/40G, making it simple to connect and switch between higher and lower speed endpoints.

This feature guarantees that the switches never slow down and always maintain traffic, without blocking network communications.

OpenWare

The switch fabric is combined with a highly efficient dual-core ARM-based processor running OpenWare™, Abaco’s switch management software,

that can be modified to meet application needs. OpenWare offers flexibility to manage the switches via serial console, SNMP, Telnet, SSH, or web interface.

Overwriting onboard non-volatile storage for security purposes is simplified with a built-in sanitization capability.

Part of the family

The SWE450S is an integral part of Abaco’s expanding portfolio of products that are equipped with 100GbE interfaces, such as SBC3612D, SBC3513. VP891. SBC6511. HPC2812. and VP461.

Specifications

Advanced Software Features:

Data center bridging (DCB) including PFC & ECN, Port splitting/grouping 10G/40GBASE-KR4

Control Interface

Ethernet, RS232 / LVCMOS, USB

Environmental

Level C-40 +55C, Level E -40 +75C. Contact factory for higher temperature operation requirements

Ethernet

100GBASE-KR4. 100GBASE-SR4

Form Factor

3U VPX

Front I/O

Yes

Management Type

Fully Managed Layer-2/3+

Ruggedization

Air cooled rugged, Conduction cooled rugged

Software

OpenWare Switch Management

SOSA Slot Profile

SLT3-SWH-6F1U7U-16.4.15. SLT3-SWH-6F8U-16.4.16
