Abaco RES3000 Compact, Rugged Ethernet Switches

RES3000 Compact, Rugged Ethernet Switches

Fully Managed Ethernet Switch Family

Overview

The most compact switches we have ever designed

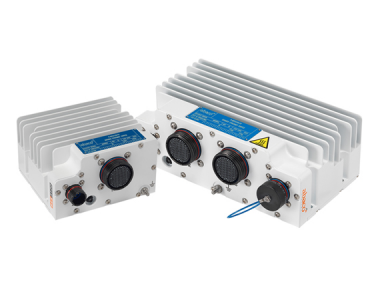

The 12-port RES3000 is just 5.8″ wide, 5.2″ deep, 3.4″ tall and weighs only 2Kg. The 24-port and 28-port RES3000 are the same depth and height but just 9.6″ wide, weighing around 3Kg.

That’s what we call SWaP optimization.

RES3000

Ready for VICTORY and beyond

While built specifically to meet military specifications for standardization, modularity and re-use such as the US Army’s VICTORY initiative,

the RES3000 product family’s low SWaP-C, robust ruggedization and feature set make it an ideal fit for a wide range of both military and industrial networking applications.

Port density – good things come in small packages

We crammed as many ports as we could possibly fit into the RES3000 product design, giving you the option of 12 or 24 1000BaseT ports with an additional option of four 10GBASE-SR ports for the 24-port version. Future port configurations are likely, given the modularity of the RES3000 design.

Optimum manageability and flexibility

The RES3000 features Abaco’s OpenWare™, a robust, comprehensive and powerful switch management environment with layer 2/3 protocol suite.

Exclusive to Abaco Ethernet switches, OpenWare provides integrated management services including configuration, monitoring, switching control, addressing and routing and can be customized to meet your unique requirements.
