ABB DSU10 High-performance control module
ABB DSU10 High-performance control module
ABB DSU10 is a high-performance control module designed for industrial automation systems, serving as the core processing unit in ABB’s advanced distributed control architectures.
Engineered to deliver deterministic control and seamless integration with field devices, the ABB DSU10 combines robust computing power with flexible communication capabilities, making it ideal for applications requiring precise logic execution and real-time data management in manufacturing, energy, and infrastructure sectors.
As part of ABB’s AC 800M or 800xA systems, this module acts as a central hub for processing control algorithms, synchronizing I/O operations, and facilitating communication between PLCs, HMIs, and distributed sensors/actuators.

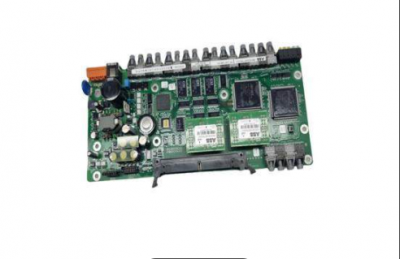

DSU10
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSU10 |
| Manufacturer | ABB |
| Product Type | Control Module |
| Input Voltage Range | 90–250 V AC |
| Output Voltage | 24 V DC (internal power supply) |
| Communication Protocols | Modbus, Profibus-DP, Ethernet/IP, TCP/IP |
| Operating Temperature | -40°C to +85°C |
| Protection Rating | IP67 |
| Dimensions | 150 mm × 100 mm × 50 mm |
| Weight | 1.2 kg |
| Storage Function | SD card slot (data backup/recovery) |
| I/O Synchronization | Support for real-time IO mirroring |
| Cycle Time | Default 150 ms, configurable down to 10 ms |
