VME-4145 4-Channel 16-bit Arbitrary Waveform Generator Abaco
VME-4145

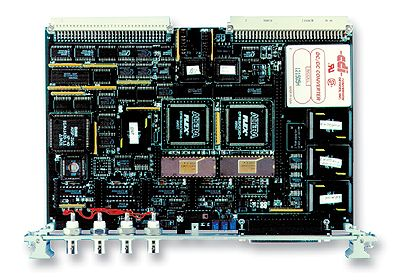

VME-4145 4-Channel 16-bit Arbitrary Waveform Generator
Overview
The VME-4145 Analog Output Board provides four high-quality analog output channels with 16-bit resolution. Each output has a dedicated D/A Converter (DAC), and can source or sink 10 mA at ±10 V. The analog outputs can be disconnected from the field wiring for off-line testing. Autocalibration and self-test are initiated by a VMEbus system reset or by execution of a software command.
Continuous, single burst, or burst/idle/burst waveform generation modes of operation
Autocalibration of all channels
Four-channel analog waveform generator
One 16-bit D/A converter per output
Specifications
Channel Voltage Ranges
0-5V, 0-10V, ±2.5V, ±5V, ±10V
Channels
4
Form Factor
VME
Function
16-bit DAC
Throughput
400 nS
