VME-4911

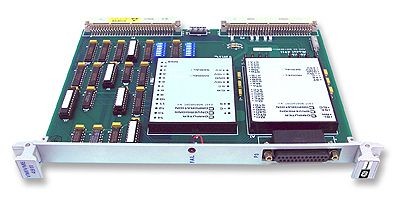

VME-4911 Quad-Channel Multiplexed Synchro/Resolver-to-Digital Converter Board

Overview

The VME-4911 board is a four-channel, 14-bit multiplexed Synchro/Resolver-to-Digital Converter. The multiplexed input scheme is cost-effective because fewer components and interconnections are required. The product was designed utilizing primarily two modules. A converter module is interconnected to the multiplexer and S&H module to form a four-channel board. All common synchro and resolver line-to-line voltages and frequencies are available.

• Double Eurocard form factor
• Front panel fail LED
• Internal transformers for 60 and 400 Hz references
• 3-wire synchro plus reference or 4-wire resolver plus reference
• Expandable by adding multiplexers
• Simultaneous sampling and random access
• Quad-channel multiplexer
• 14-bit converter
• Supports Built-in-Test for VME-49xx series
•
