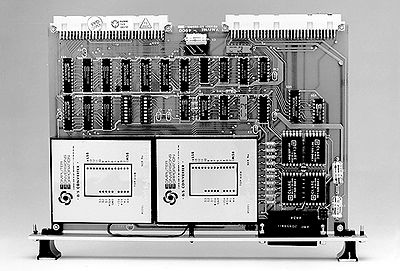

VME-4900

Digital-to Synchro/Resolver Board

Overview

VME-4900 Dual-Channel Digital-to-Synchro/Resolver Converter Board

• Model VME-4900-218R is directly compatible with high power synchro booster amplifiers
• 1.5, 4.5, and 5.0 VA outputs
• Nonprivileged or supervisory short I/O
• Compatible with Abaco Systems Intelligent I/O Controller product line
• Supports real-time and off-line fault detection and isolation
• AMP D-type connector (no. 206584-1) for front panel field connection
• Front panel fail LED
• Internal transformers
• 3- or 4-wire output for driving synchros or resolvers, respectively
• 14-bit converter with an overall accuracy of ±4 arc minutes
• Model VME-4905 is also available with 5.0 VA outputs
•
