IP-DAC

Overview

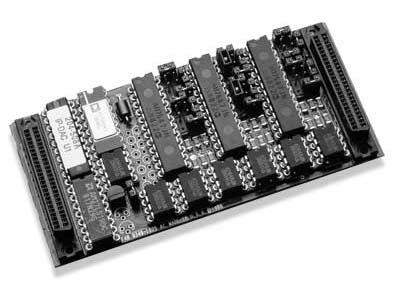

The IP-DAC provides six channels of 12-bit digital to analog conversion on a single-wide IndustryPack®. Any one of five output ranges may be selected individually for each DAC channel via shunts. A single high-precision (3ppm/C) reference provides exceptional stability. Alternatively, an external reference may be provided.

Each of the six channels is factory calibrated and the offset and gain correction factors are stored in the ID PROM. Software may use this calibration information to provide output voltages accurate to within one LSB.

Specifications

Form Factor

IndustryPack
