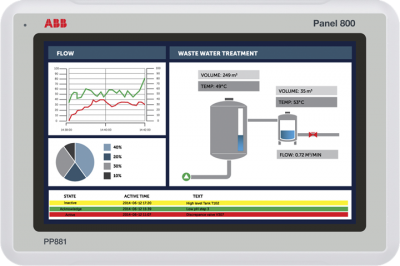

ABB Panels PP881
Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The standard range of Panel 800 comprises of PP875, PP881, PP883, PP886 and PP895 which are easy-to-use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All standard panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screens and high-resolution displays for increased efficiency and excellent operator interaction.
PP881
Features and benefits
- Easy to use
A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with a familiar Microsoft® Windows® environment along with multiple language support results in quick, easy and efficient engineering. - State-of-the-art graphics
Vector-based, high-resolution graphics in TFL/LED display, with the icon-based interface, navigation, and control. - Robust and reliable
Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures range between -10° C to + 60° C with maximum 85% humidity. - Truly open platform
Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more. - Try your application before you use it
Nice possibility to simulate and run the application directly from the Panel Builder 800 before you use it. -
General info
Article number 3BSE092978R1 Category Standard Display type Touch Display size 10.1″ Brightness 500 cd/m² Display resolution, ratio 1024×600 pixels Processor ARM9 (1 GHz) Main memory 1 GB External storage media 2 GB SSD, 1.5 GB free for application storage Dimension WxHxD (mm) 292 x 194 x 52 mm Power supply + 24 V DC (18 to 32 VDC) Operating temperature -10 °C to +60 °C
