ABB Freelance800F AC800F Data Sheet
ControlIT is the
evolution of control
systems into
IndustrialIT:
Hardware and softwarecomponents seamlesslyintegrate process
oriented informationinto true openapplications,
improving processcontrol usingworldwide-accepted
industry standards.
Scalable and platformindependent productsshow the evolutionpath into the ITenvironment byenhancing your
installation.

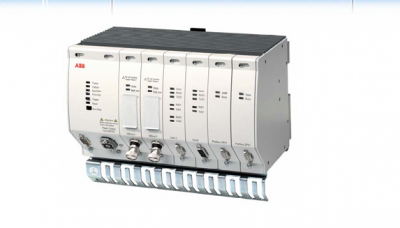

AC 800F opens up the flexibility of Fieldbustechnology to the user. The AC 800F collects
and processes diagnostic and process datafrom four Fieldbus lines, which may be of different types. It does this in addition to thetasks of a “conventional” process station.
The AC 800F is available in two versions:
• 4 MB static RAM, 4 MB EPROM
• 16 MB synchronous dynamic RAM,
8 MB EPROM
Up to 4 (different) fieldbus modules can be
plugged into the AC 800F. The communication
with other controllers runs via Ethernet.
The AC 800F optionally provides several levels
of redundancy:
• device redundancy with 2 AC 800F
• power supply redundancy (24 V DC)
• Ethernet communication redundancy
(standard)
• Cable redundancy for Profibus DP,
requires external equipment (RLM01)
The data protection is made via battery back-up
by Ethernet or battery modules with appropriate
AC800F
functionality.
• Process Station with integrated fieldbus
capability
• 4 high-speed fieldbus lines
• Supports different fieldbus types, even
simultaneously:
PROFIBUS-DP, up to 12 MBd
Modbus
CAN
Foundation Fieldbus H1 (with LD800
HSE)
• Easy engineering:
fully integrated in Control Builder F
• One unified database for field devices
shared by the control level and the Human
System Interface (HSI)
• Module recognition with factory and op
erational parameters
• Comprehensive diagnostics for proactive
maintenance
• Compact, rugged design
• Front panel connectors
• DIN Rail (C-rail) or wall mounting for easy
installation
• Ambient temperature 0-60 °C (32-140 °F)
with temperature monitoring
• EMC certification according to EN50082
• Certification:
CE, NAMUR, CSA, UL, EN61000-6-2.
