ABB CP450 Installation and Operation Manual

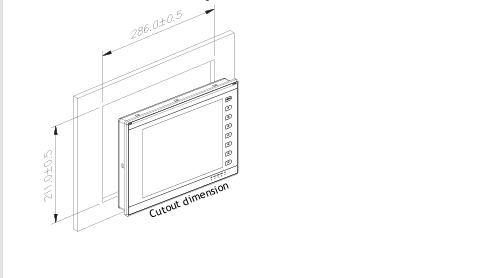

CP450 is a Human Machine Interface (HMI) with a 10.4″ TFT Liquid Crystal

Display, and is water- and dust-resistant according to IP65/NEMA 4X (indoor use

only).

CP450 is CE-marked and meets your need to be highly transient-resistant while

in operation.

Also, its compact design makes connections with other machinery more flexible,

thus achieving the optimal performance of your machines.

CP400Soft is used to design applications of CP450;  it is reliable, user-friendly and

compatible with many models.

Safety Precautions

Both the installer and the owner and/or operator of the operator terminal must

read and understand this installation manual.

General– Only qualified personnel may install or operate the operator terminal.– The operator terminal must be installed according to the installation instruc

tions.– The operator terminal is designed for stationary installation on a plane surface,

where the following conditions are fulfilled:

• no high explosive risks

• no strong magnetic fields

• no direct sunlight

• no large, sudden temperature changes

• for use in Pollution Degree 2 Environment

• for use on the flat surface of Types 1 and 4X (indoor use only) enclosures– Never allow fluids, metal filings or wiring debris to enter any openings in the

operator terminal. This may cause fire or electrical shock.– The operator terminal fulfills the requirements of article 4 of EMC directive

2004/108/EC.– Storing the operator terminal where the temperature is lower/higher than

recommended in this manual can cause the LCD display liquid to congeal/

become isotopic.– The LCD display liquid contains a powerful irritant. In case of skin contact,

wash immediately with plenty of water. In case of eye contact, hold the eye

open, flush with plenty of water and get medical attention.– The supplier is not responsible for modified, altered or reconstructed equip

ment.– Use only parts and accessories manufactured according to specifications of the

supplier.– Peripheral equipment must be appropriate for the application and location.– The figures in this manual serves an illustrative purpose. Because of the many

variables associated with any particular installation, the supplier cannot as

sume responsibility for actual use based on the figures.– The supplier neither guarantees that the operator terminal is suitable for your

particular application, nor assumes responsibility for your product design, in

stallation or operation.

– The operator terminal is equipped with a 24 V DC input. Supply power other

than 24 V DC ± 15% will severely damage the operator terminal. Thus, check

the power supply supporting the DC power regularly.

Grounding– Without grounding, the operator terminal may be severely affected by excess

noise. Make sure that the grounding is done properly from the power connec

tor at the rear side of the operator terminal. When power is connected, make

sure that the wire is grounded. – Use a cable of at least 2 mm2 (AWG 14) to ground the operator terminal.

Ground resistance must be less than 100 Ω (class3). Note that the ground

cable must not be connected to the same ground point as the power circuit.

Installation– Communication cables must be separated from power cables for operational

circuits. Only use shielded cables to avoid unpredictable problems.

During Use– Emergency stop and other safety functions may not be controlled from the

operator terminal.– Do not use too much force or sharp objects when touching the keys, display

etc.

Service and Maintenance– Only qualified personnel should carry out repairs.– The agreed warranty applies.– Before carrying out any cleaning or maintenance operations, disconnect the

equipment from the electrical supply.– Clean the display and surrounding front cover with a soft cloth and mild

detergent.– Replacing the battery incorrectly may result in explosion. Only use batteries

recommended by the supplier.

Dismantling and Scrapping– The operator terminal or parts thereof shall be recycled according to local

regulations.– The following components contain substances that might be hazardous to

health and the environment: lithium battery, electrolytic capacitor and

display.
